Q355B Lifting Machine Crane Lebus Grooved Drum Sleeves For Winding Wire Rope

Ask Lasest Price
Brand Name :	LBS
Model Number :	LBSS
Certification :	CCS
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100 Peice Per Month
Delivery Time :	After Advance 15-30 Days

Add to Cart

Product Details
Company Profile

Q355B Lifting Machine Crane Lebus Grooved Drum Sleeves For Winding Wire Rope

Lifting Machine Crane Lebus Grooved Drum Sleeves For Winding Wire Rope

Grooved Sleeves(Shell)

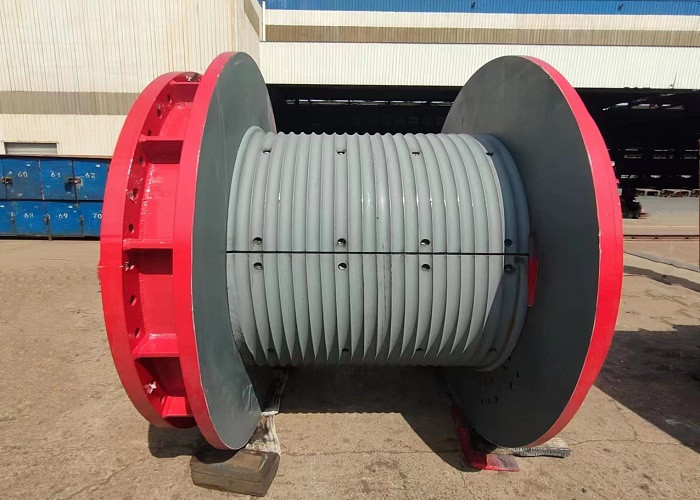

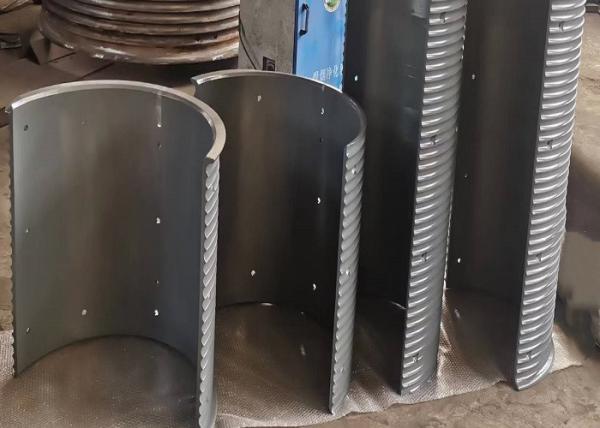

Split-sleeve consists of a pair of outer shells that are bolted or welded onto a smooth drum. We can manufacture spiral groove and lebus groove.

The split-sleeve depends on the drum’s size,wire rope diameter and length. The sleeves is composed of a sleeve cut in half, which can be fixed to a smooth drum by welding or bolted fastening. If we want to make a sleeve, we need only the drum size , wire rope size , and the number of winding layers, We can customize production based on this data.The scope of application is the same as that of lebus drum.

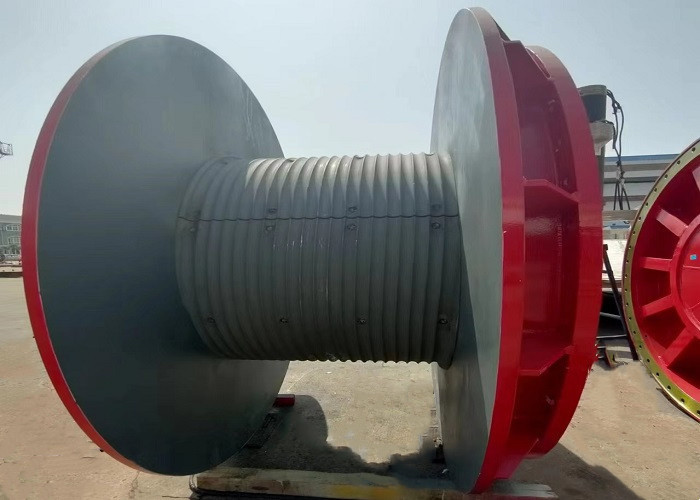

the complete drum with flanges,machine-finished

according to customers' requirements,the flanges are either welded or screw-bolted
the groove is cut directly into the body of the drum
the groove is available as either LBS-groove or helical-groove
groove geometry is determined by rope construction,diameter and length and by application.
the drum is provided with the requested mounting dimensions to the fit the flanges by welding or screw bolting.

some Technical Parameters

No:	Wire diameter(mm)	Pulling Force(KN)	Rotation Direction	Drum Diameter(mm)	Drum Length(mm)
1	3~8	3~10	Lefthand,Righthand	>160	<1000
2	10~16	12~20	Lefthand,Righthand	>320	<1000
3	18~24	20~80	Lefthand,Righthand	>480	<1000
4	26~32	100~120	Lefthand,Righthand	>640	<1000
5	34~40	150~200	Lefthand,Righthand	>800	<1000
6	42~50	240~400	Lefthand,Righthand	>1000	<100

Application field

In addition to being used for mining drilling, drilling, loading and other mechanical equipment power, more widely used in ships, offshore platforms, metallurgy, paper making and petrochemical industries.
