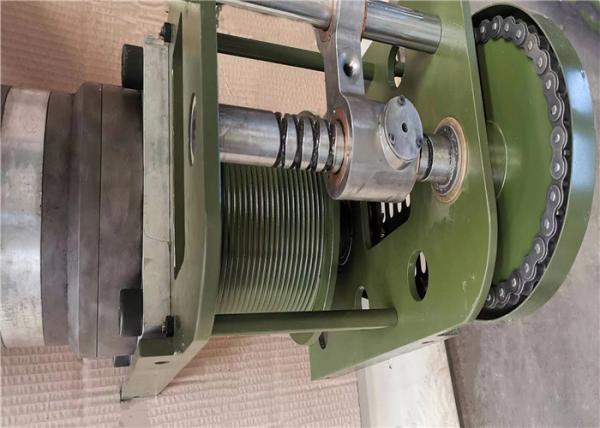

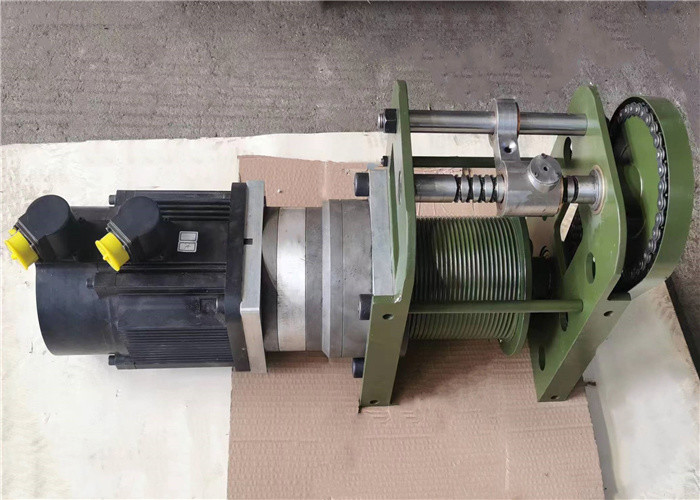

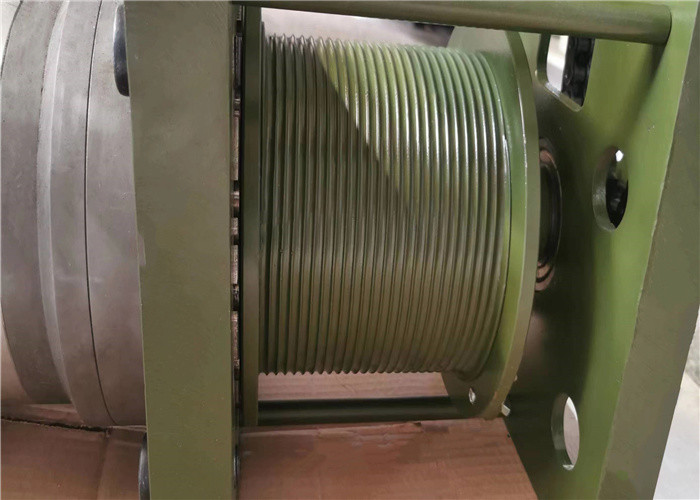

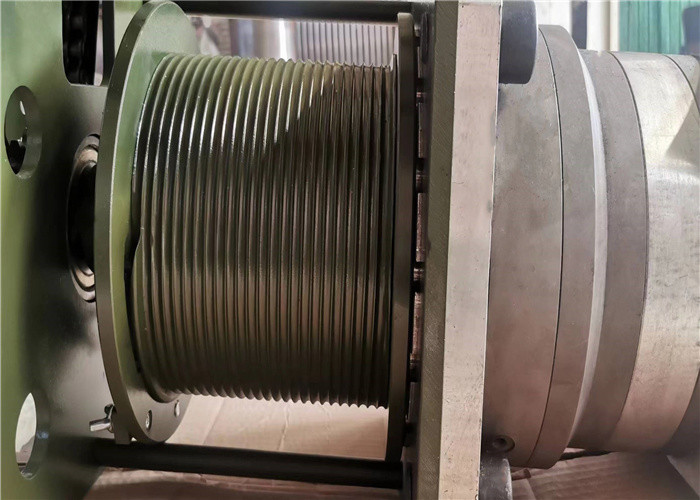

1.5T Electric Winch With Cable Winding System And Lebus Grooved Drum

The winch converts the electric energy into mechanical energy through the motor, that is, the rotor of the motor rotates the output, through the triangle belt, shaft, gear, and then drives the drum to rotate after deceleration. The reel winds the wire rope and passes through the pulley block to make the crane hook lift or drop the load, change the mechanical energy into mechanical work, and complete the vertical transport loading and unloading work of the load.

Installation of electric winch

The most important note here is the state of the rope drum, which must be used to ensure that the lasso is evenly wound before the process begins. The installation process is as follows:

1. Plug in the remote control. Connect the distal end of the first plug-in winch.

2. Do not let the remote connection hang. If you are a driver, operate the remote control from the driver's seat and then make additional connections around the side mirrors of the car to make co-working easier.

3. Open the noose, use the remote control to open the noose a bit, and install it on the side of the electric winch.

Turn on the clutch. Please note that we have to open the hook later to open the clutch.

5. Hold the rope hook hand. Grabbing the hook with one hand pulls the rope out of the roller, so no matter how long the rope has been twisted, it doesn't reach the hook.

6. Pull the rope on the pivot and lock the clutch.

So the electric winch is installed.

The pulling winch consists of several parts, which are connected in series by wire rope. The working principle is to drive the whole system by the friction between the friction wheel and the wire rope, and the friction wheel is connected with the drive device. Generally, the width of the winch is within 1.5 m, which ensures the compactness and reliability of the entire transport unit. The traction winch is provided with tensioning device.

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical operation. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.

Hebei Junke Machinery Techonlogy Co., Ltd was established in 2010. Now it is located in Shijiazhuang city, Hebei province, China. Our company covers more than 10000 square meters and it has very convenient transportation. There are more than 300 existing staff members  among who are 100 profressional technicists. We also have skilled workers and advanced processing equipments.

Our factory has more than 2000 sets of casting, forging, gear machining, sheet metal stamping, welding, heat treatment,machining and other advanced equipments. In recent years, we have introduced 80 machines of Germany CW1000 processing center, CNC four axis,five-axis linkage machining center, CNC punching machine,large CNC gear hobbing gear grinding machine, large CNC floor-type boring and milling machine, vacuum electron beam welding, CNC welding robots and other advanced processing equipments.

Our factory always adhere to business idea of "Honesty and Credibility＆Customer First". With high reputation, high quality products and a competitive price policy ,we provide our customers with satisfactory services.

We hope to establish long-term and stable business cooperation with domestic and foreign customers!
