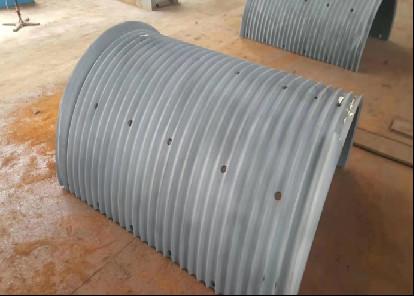

Steel Wire Rope Winding Grooved Geometry Drum Skin for Marine
Vessels
Product Description:
Features:
- Product Name: Grooved Drum Sleeves
- Groove Number: 121.5
- Rope Capacity: 5-30 Tons
- Rope Diameter: 14mm±0.5mm
- Rope Length: 50-2000 M
- Surface Treatment: Polishing, Painting, Galvanizing
- Special Feature: LBS Grooved Drum Sleeve, Winch Drum Skin Grooving, LBS Grooved Drum
Leather
Technical Parameters:
| Product Basic Parameters(Specific specifications can be customized
according to requirements) |
| Product Name | Grooved Sleeve | Type Specification | LBSS-2308002 |
| Brand | LBS | Producing Area | Shijiazuhang, Hebei, China |
| Production Facility | CNC Center | Certification | ISO9001 |
| Function | Winding, storing steel wire
ropes and lifting heavy objects | Application | Open sea vessels |
| Color | Black (Customization) | MOQ | 1 pcs |
| Material | Polymer nylon | Construction | Bolted connection |
| Rope Groove Type | lebus | Weight | 74kg |
| Lifting Method | Vertical | Power Source | Electric motor |
| Accessory Products | Lifting structure of crane | | |
| Product Technical Parameters(Specific specifications can be
customized according to requirements) |
| Performance requirements for drawing design: |
| Material | Polymer nylon | Material Standards | MC-GB/T13254-2017 |
| Rope Diameter | 14mm±0.5mm | Rope Type | Armored steel wire towing cable |
| Layers | 33 | Number of Coils Per Layer | 121.5 |
| Direction | Left 45° | Groove Bottom Diameter | 600mm |
| Bottom Cable Pitch Diameter | 614mm | Rope groove pitch | 14.38mm |
| Working Load | ≥10kN | | |
| Environmental adaptability requirements: |
| Operation Temperature | -28℃-+65℃ | Storage Temperature | -40℃-+69℃ |
Processing Technic:
Applications:
Grooved Drum Sleeves is a common and useful equipment in many
fields, including construction, water conservancy projects,
forestry, mines, wharves and more. It can be used for a variety of
purposes, such as material lifting or flat dragging, and also as a
supporting aspect of modern electronically controlled automatic
operations.
Support and Services:
We offer a comprehensive technical support and service for our
Grooved Drum Sleeves products. Our team of experienced
professionals are always available to answer your questions and
help you find the best solution for your application.
We provide a range of services including:
- Installation and setup assistance
- Troubleshooting and diagnostic support
- Product usage and maintenance advice
- Warranty and repair assistance
- Training and education
If you need assistance with our Grooved Drum Sleeves products,
please contact us and we'll be more than happy to help.
Packing and Shipping:
Packaging and Shipping for Grooved Drum Sleeves:
- Each Grooved Drum Sleeves is packed in a strong wooden boxes or
pallets.
- The box is labelled with the product details, such as the model
number, and other relevant information.
- We use reliable shipping providers to ensure that our Grooved Drum
Sleeves reach their destination safely and on time.
