Marine Wind Power Equipment Crane Drum LBS Grooved Sleeve Double
Fold Rope
Product Description:
LBS system & LBS rope groove structure
Features:
- Product Name: Grooved Drum Sleeves
- Application: Marine Wind Power Installation Crane
- Features: Winds Smoothly Without Biting The Rope
- Rope Diameter: 36mm(+2%-+4%)
- Groove Number: 1-40
- Special Features: LBS Grooved Drum Sleeve, Lebus Grooved Geometry Drum Skin, Lebus
Grooved Geometry Drum Leather, Smooth Winding, High Strength
Technical Parameters:
| Product Basic Parameters(Specific specifications can be customized
according to requirements) |
| Product Name | Grooved Sleeve | Type Specification | LBSS-2308004 |
| Brand | LBS | Producing Area | Shijiazuhang, Hebei, China |
| Production Facility | CNC Center | Certification | CCS |
| Function | Rope winding and rope arrangement | Application | Marine wind power installation crane |
| Color | Customization | MOQ | 1 pcs |
| Material | S355J2+N/EN10025(1.0570) | Construction | Weldment |
| Rope Groove Type | LBS double fold rope grooves | Rope Capacity | 1000m |
| Lifting Method | Vertical | Power Source | Electric motor |
| Product Technical Parameters(Specific specifications can be
customized according to requirements) |
| Performance requirements for drawing design: |
| Material | S355J2+N/EN10025(1.0570) | Material Certification | V Impact,EN10204-3.1B, -20℃, min.27J |
| Rope Diameter | 36mm(+2%-+4%) | Rope Groove Bottom Diameter | 1000mm |
| Layers | 9 | Number of Rope Groove Turns | 27.5 |
| Outer Diameter | 970k12(+0.9/0)mm | Distance Between Inner Sides of Baffles | 1039.5(+0.2/-0.2)mm |
| Direction | Lefthand or righthand | | |
| Environmental adaptability requirements: |
| Ambient Temperature | -20℃-+45℃ | Design Temperature | -10℃ |
| Relative Humidity | ≤95% | Atmosphere Pressure | 0.1MPa |

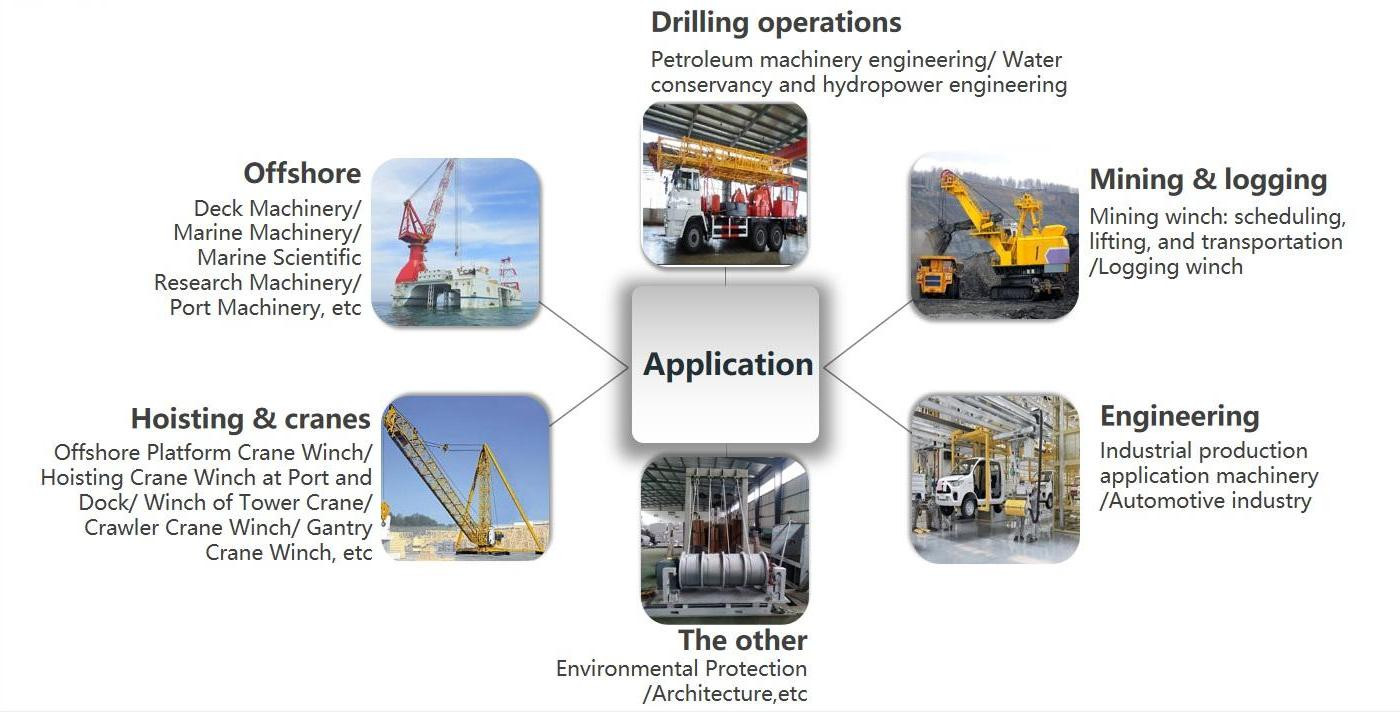

Applications:
a.Crane machinery: The bridge lifting machine, Tower crane, Gantry
crane, Crawler crane winch, etc
b.The petroleum industry: Oil drilling rig, Petroleum tractor
hoist, Petroleum workover rig, Trailer mounted pumping unit winch ,
Logging winch, etc
c.Offshore Marine machinery: Offshore petroleum crane winch,
Mooring winch, Traction winch, Man-riding winch, Anchor winch,
Hydraulic winch, etc
d. The construction machinery: Building wipe wall winch, Winding
hoist, Windlass, etc
e. Engineering machinery: Cable winch, Tower crane, Piling machine,
Hydraulic winch, etc
f. Mining winch: Dispatching winch, Prop-pulling winch, Sinking
winch, etc
Support and Services:
Grooved Winch Drum Technical Support and Service
We provide technical support and service for our products. Our team
of experts is available to help you with product selection,
installation, and maintenance. We can also assist with
troubleshooting, problem solving, and repairs. Our technicians are
knowledgeable and experienced and can provide advice on how to best
use the product.
If you ever have any questions or concerns about your Grooved Drum
Sleeves, our customer service representatives are available to
help. We understand the importance of your product and strive to
provide the best service and support possible. We are committed to
ensuring that your Grooved Winch Drum operates properly and is
providing the results you are expecting.
Contact us today and let us help you get the most out of your
Grooved Drum Sleeves.
