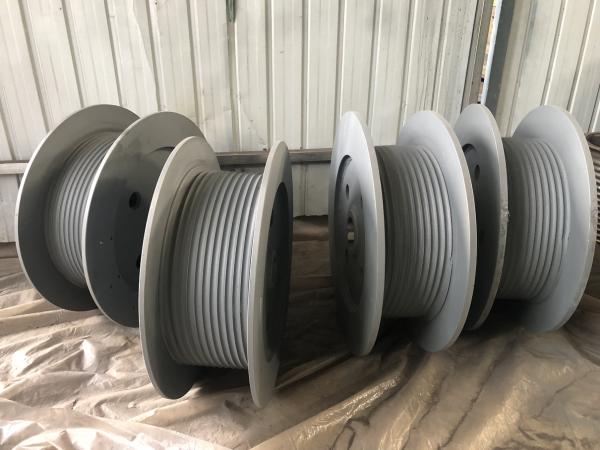

Lefthand Or Righthand LBS Drum Smooth Winding
Product Description:
The LBS system & LBS rope groove
Features:
- Product Name: Grooved Cable Drum
- Drum Length: Customizated
- Material: S355JR/A709Gr50
- Rope Capacity: 10-100m
- Groove Number: 1-30
- Winch Drum Grooving Service: Lebus Gearmatic Winch Drum Grooving
Technical Parameters:
| Product Basic Parameters(Specific specifications can be customized
according to requirements) |
| Product Name | Grooved Drum | Type Specification | LBSD-2308003 |
| Brand | LBS | Producing Area | Shijiazuhang, Hebei, China |
| Production Facility | CNC Center | Certification | ISO9001 |
| Function | Winding, storing steel wire ropes and lifting heavy objects | Application | Lifting or flat dragging of materials In marine, construction,
water conservancy projects, forestry, mines, docks, etc. |
| Color | Grey epoxy zinc rich primer (Customization) | MOQ | 1 pcs |
| Material | UNS G10200/E235B(Fe
360B)/S235JRG1 | Construction | Weldment |
| Rope Groove Type | Lebus | Rope Capacity | 30m |
| Lifting Method | Vertical | Power Source | Electric motor |
| Overall Structure | Flange, simplified body, pressure plate, rib plate | Accessory Products | Lifting structure |
| Product Technical Parameters(Specific specifications can be
customized according to requirements) |
| Performance requirements for drawing design: |
| Material | UNS G10200/E235B(Fe 360B)/S235JRG1 | Material Standards | ASTM/A29M, ISO630, BSEN 10025 |
| Rope Diameter | 15mm(+2%-+4%) | Rope Length | 30m |
| Layers | 1-3 | Groove Bottom Diameter | 389mm |
| Direction | Lefthand 60° or righthand 60° | Number of Rope Groove Turns | 12.5 |
| Centre-to-centre Distance of The First Layer of Steel Wire Rope | 404mm | Rope Groove Pitch | 15.5m |
| Process: Blanking - Rolling Plate - Rough Turning - Welding
(Simplified/Web/Rib Plate/) - Rope Groove - Welding Climbing
Platform - Car Climbing Platform - Welding (Simplified/Baffle/Rib
Plate/) - Annealing - Turning - Repairing Rope Mouth - Drilling and
Tapping - Press Plate Assembly - Sand Blasting and Painting -
Factory Inspection |
Applications:
Processing Technic:
Support and Services:
Grooved Winch Drum Technical Support and Service
Our team of experienced professionals provide technical support and
service for Grooved Winch Drums. We have been in business for over
10 years and have developed the highest level of expertise in the
industry. We provide our customers with prompt, knowledgeable, and
reliable service.
Technical Support
We provide technical support for all makes and models of Grooved
Winch Drum. Our knowledgeable staff can answer your questions and
provide you with helpful advice on installation, maintenance, and
troubleshooting. We are available 24/7 to answer any questions you
may have.
Maintenance and Repair
We offer maintenance and repair services for all Grooved Winch Drum
models. Our experienced technicians are trained to diagnose and
repair any issues that may arise. We can also provide preventative
maintenance services to keep your Grooved Winch Drum running
smoothly.
Parts and Accessories
We offer a wide selection of parts and accessories for Grooved
Winch Drums. From replacement parts to upgrades, we have the parts
you need to keep your Grooved Winch Drum running at peak
performance. We can also provide custom parts and accessories to
fit your specific needs.
Packing and Shipping:
Packaging and Shipping
Grooved winch drum products are packaged in wooden boxes that are
shrink-wrapped for extra protection during shipping. The box size
will depend on the size and quantity of the order. The boxes are
then shipped with a reliable courier or freight service.
