10T Electric Winch With Spooling Device Used In Lifting And Pulling
Equipment
The Advantage of Drum Sleeves
When the split type drum fence skin is installed, the split fence
skin sleeve is wrapped on the smooth slotless drum, and is closely
connected with the drum through bolts or welding, so that the
original smooth surface of the drum outside the surface becomes the
form of lebus double folding rope groove, which is convenient for
the application of winch modification or replacement of the drum.
Production Equipment
Our factory has more than 2000 sets of advanced equipment such as
casting, forging, gear processing, sheet metal stamping, riveting,
heat treatment and mechanical processing. In recent years, the
Germany CW1000 machining center, CNC four axis, five axis linkage
machining center, CNC punch, large CNC hobbing gear grinding
machine, large CNC floor boring and milling machine,Vacuum electron
beam welding, CNC welding robot and 80 roll machine and other
advanced processing equipment.
Technical Parameters
| No: | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
1
| 3~8 | 3~10 | Lefthand,Righthand | >160 | <1000 |
2
| 10~16 | 12~20 | Lefthand,Righthand | >320 | <1000 |
3
| 18~24 | 20~80 | Lefthand,Righthand | >480 | <1000 |
4
| 26~32 | 100~120 | Lefthand,Righthand | >640 | <1000 |
5
| 34~40 | 150~200 | Lefthand,Righthand | >800 | <1000 |
6
| 42~50 | 240~400 | Lefthand,Righthand | >1000 | <1000 |
Overview
Product name
| Cable winch drum |
Drum Quantity
| Single Or Double |
Drum Design
| LBS Groove Or Spiral Groove |
Material
| Carbon Stainless And Alloy Steels |
Size
| Customization |
Application Range
| Construction Mining Terminal operation |
Power Source
| Electric and hydraulic |
Rope Capacity
| 100~300M |
Product Features:
1. Steel Wire rope electric winch with spooling system
2. Automatic rope arrangement can be realized
3. Compact structure and reasonable design
4. Keep the wire rope's tensioning tight for winches & cranes
5. The spooling machine can supply a back force on the rope to keep
the rope a tensioning force.The spooling machine and its HPU are
removeable

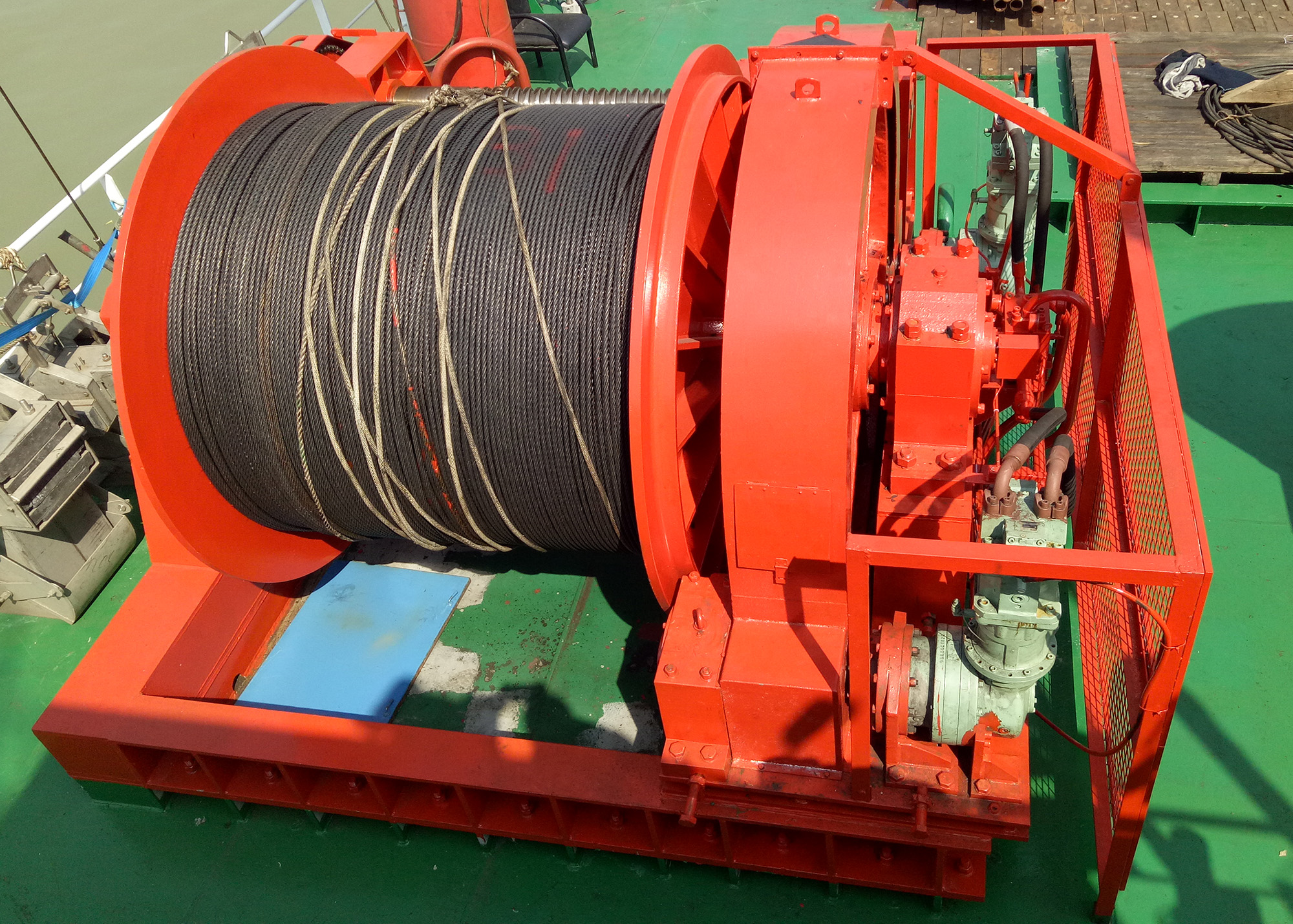

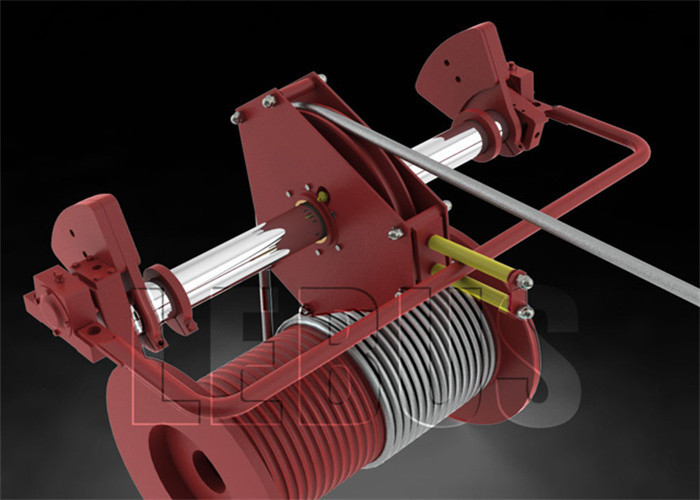

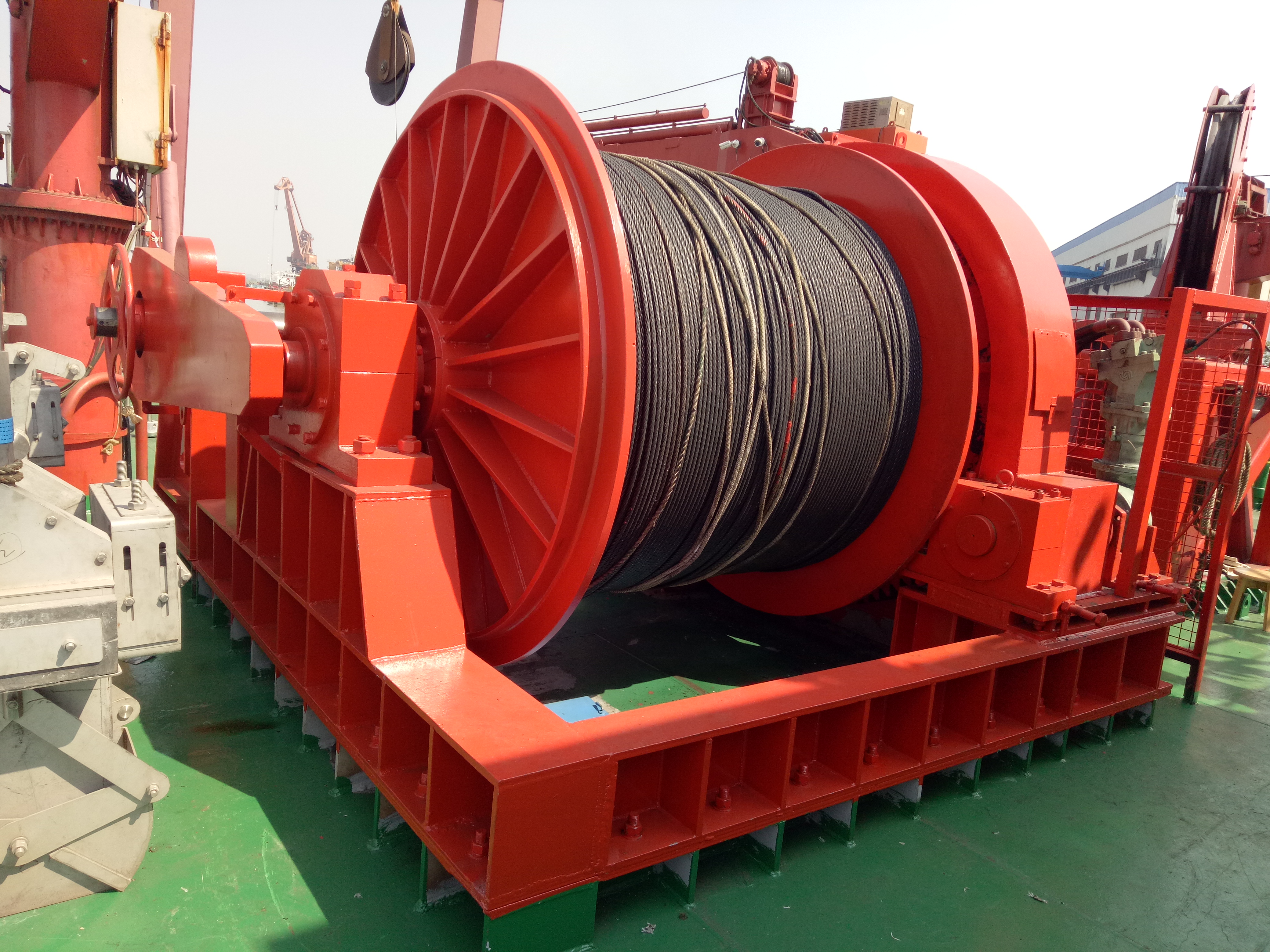

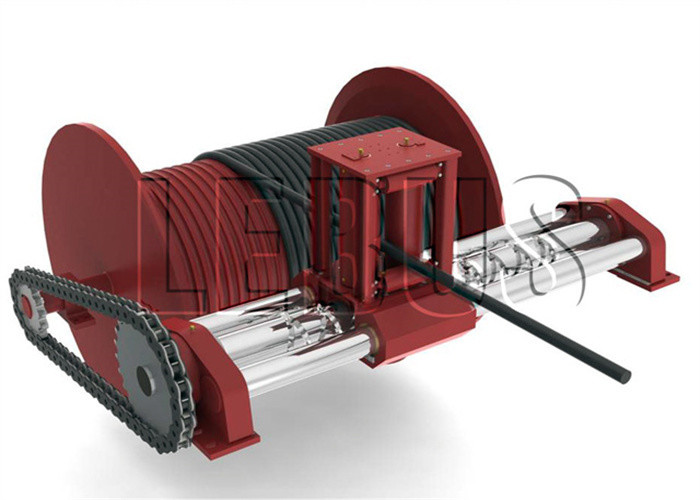

Spooling device:
1. The rope winding device of the winch (spooling device winch)
adopts the principle of double rotating screw to drive the rope
wheel to move back and forth,It is mechanical transmission device,
easy to use, safe and reliable.
2. The winch rope arranging device consists of six parts, namely,
power output part, transmission box, clutch, spiral sleeve part,
rope supporting part and base.
3. In the installation process, does not require any part of the
transformation of the winch, only needs to install the outer gear
on the winch motor side, the power of the motor output.
Drive principle:
Winch drum - gear box - screw sleeve rotation - rope wheel
reciprocating movement.
