1,According to the power winch is divided into pneumatic, manual,
electric, hydraulic three types. From the use of the classification
can be divided into building winch and Marine winch.
2,According to the function of winch can be divided into: Marine
winch, engineering winch, mining winch, cable winch and so on.
3,According to the drum form is divided into single drum and double
drum.
4,According to the drum distribution form is divided into parallel
double drum and double drum before and after.
5,Special types of winch are: frequency conversion winch, double
drum winch, handbrake lever double brake winch, with limit winch,
electric control winch, electric control handbrake clutch winch,
large double drum double brake winch, large external gear winch,
large hydraulic winch, large external gear with rope arrangement
winch, double drag winch, Large hydraulic double cylinder double
brake winch, frequency conversion belt limiter rope groove winch.
Techinical parameters:
| technical parameters |
| input powerkW | JZ05 | JZ03 | JZ10-2 | JZ08-02 | JZ02-09 | JZ3-2 | JZ50D |
| 150 | 180 | 400 | 450 | 600 | 735 | 1100 |
| master rotor | Maximum Fast line tension(second floor)kN | 80 | 120 | 180 | 210 | 280 | 275 | 340 |
|
|
| diameter of the tube body x lengthmm | Φ345×590 | Φ356×912 | Φ450×912 | Φ450×912 | Φ580×1012 | Φ640×1237 | Φ685×1138 |
| brake drum (disc) diameter x length (thickness)mm | Φ810×210 | Φ970×260 | Φ1070×310 | Φ1070×310 | Φ1168×267 | Φ1168×265 | Φ1600×76 |
| For wire rope diameter mm | 22 | 22 | 29 | 29 | 32 | 32 | 35 |
| maximum speed of revolutionrpm | 450 | 450 | 450 | 450 | 450 | 370 | 370 |
| brake drum cooling way | air cooling | air cooling | Forced circulating water cooling | Forced circulating water cooling | Forced circulating water cooling | Forced circulating water cooling | air cooling
|

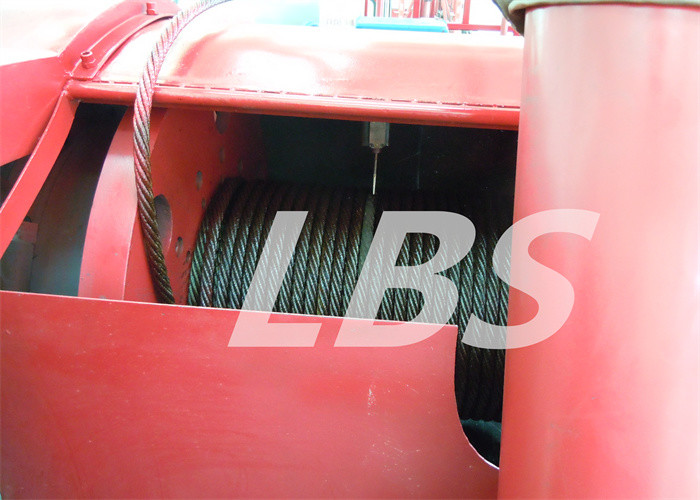

Features of winch
Winch has the following characteristics: high versatility, compact
structure, small size, light weight, heavy lifting, easy to use and
transfer, is widely used in construction, water conservancy
engineering, forestry, mining, wharf and other materials lifting or
flat drag, but also can be used as the supporting equipment of
modern electronic control automatic operation line. There are 0.5
to 350 tons, divided into fast and slow two kinds. Which is higher
than 20 tons for the large tonnage winch, winch can be used alone,
can also be used as lifting, road construction and mine lifting
machinery components, because of simple operation, large rope, easy
to move and widely used. The main technical indicators of winch are
rated load, support load, rope speed, rope capacity and so on.
Use of winch
The main uses of the winch are as follows: first, as lifting
equipment, it is used for mine lifting, sinking lifting and
suspension (lifting) sinking equipment and facilities, that is,
along the shaft lifting ore, waste (gangue) stone, lifting
personnel, lowering materials, tools and equipment; Second, it is
used as transportation equipment for underground scheduling and
transportation of ore (harvester), stope rake ore (slag) or
filling, removing columns, etc.
Our factory has more than 2000 sets of advanced equipment such as
casting, forging, gear processing, sheet metal stamping, riveting,
heat treatment and mechanical processing. In recent years, the
Germany CW1000 machining center, CNC four axis, five axis linkage
machining center, CNC punch, large CNC hobbing gear grinding
machine, large CNC floor boring and milling machine, Vacuum
electron beam welding, CNC welding robot and 80 roll machine and
other advanced processing equipment
