Special Design Lebus Grooved Mine Explosion - Proof Winch And Cable
Hoist Winch Drum
Product features
Standard: internal brake, external brake
Optional configuration: Supports wired remote control
Can be equipped with fixed length automatic cable collecting system
It can be equipped with special muffler powered by winch with air
source of air compressor (air is powered by internal combustion
engine)
Can be equipped with pressure rope system
Can be equipped with rope system
Application field
In addition to being used for mining drilling, drilling, loading
and other mechanical equipment power, more widely used in ships,
offshore platforms, metallurgy, paper making and petrochemical
industries.
Technical Parameters
No: | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
1 | 3~8 | 3~10 | Lefthand,Righthand | >160 | <1000 |
2 | 10~16 | 12~20 | Lefthand,Righthand | >320 | <1000 |
3 | 18~24 | 20~80 | Lefthand,Righthand | >480 | <1000 |
4 | 26~32 | 100~120 | Lefthand,Righthand | >640 | <1000 |
5 | 34~40 | 150~200 | Lefthand,Righthand | >800 | <1000 |
6 | 42~50 | 240~400 | Lefthand,Righthand | >1000 | <1000 |
product informaiton
| ther name: | special Design Lebus Grooved Mine Explosion - Proof Winch And Cable
Hoist Winch Drum |
| Hoist speed | 0.95-1.27m/s |
| Rotate speed | 720-960 r/min |
| Rope diameter | 3-30mm |
| Sling type | wire |
| Direction rotation | left or right |
| Application | hoist |
| Parameter | can be designed |
| Application | mining,oil drilling,or coal mine |
| Drum diameter | 900mm |
| Drum width | 600mm |

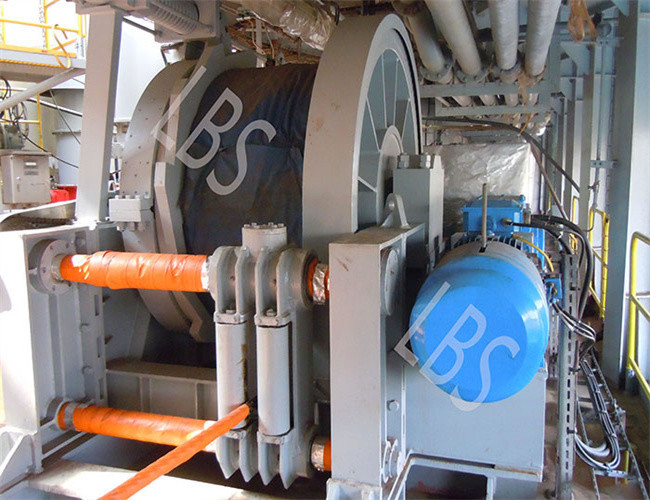

Successful cases
our production of double wire groove tube, and winch rope groove
plate assembly, now widely used in petroleum machinery, mining
machinery, ships, ports, lifting machinery, lifting machinery,
etc., and with daqing oilfield, shengli oilfield, dagang oilfield,
zhongyuan oilfield, liaohe oilfield oilfield, nanyang oil factory,
big companies such as sany, established a long-term, stable
relations of cooperation, Products are also exported to the United
States, Canada, Brazil and so on. Our factory can design and
manufacture various specifications of folding rope groove tube,
rope groove plate and winch according to the requirements of users,
but also can provide on-site installation.
Drawing dimensions
Our company service
Enterprises adhering to the "quality first, customer first"
purpose, to the pursuit of excellence, endless as the goal,
wholeheartedly for the user service.
