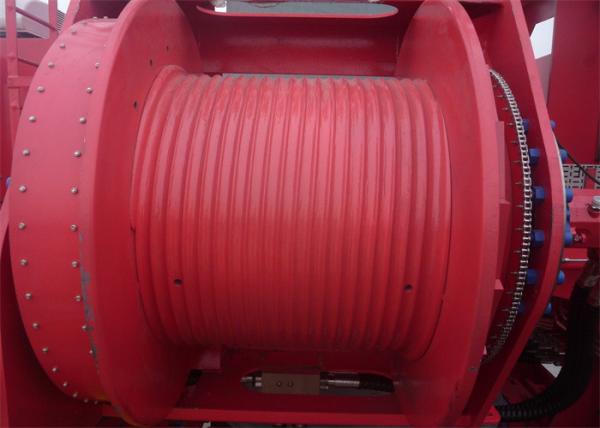

Construction Mining Equipmen Carbon Steel Lebus Grooved Cable Winch Drum

Signle / Double Drum Winch​ Description

Drum is one of the important parts of lifting machinery, used to wind wire rope in lifting mechanism or traction mechanism.By transferring the driving force provided by the hydraulic or electric drive device to the wire rope, the rotary motion of the drive device is transformed into the linear motion required.

Drum Classification

1. According to the number of winding layers:

1) Single winding: Only 1 layer of wire rope is wound on the drum, spiral groove is usually cut on the drum surface.

2) Double winding: The drum is wound with 2 layers of wire rope, spiral grooves or lebus grooves can be used.

3) Multi-winding:Multilayer wire rope winding on the drum, used for particularly large lifting height or compact mechanism occasions, the surface of the drum cutting lebus grooves.

2. According to the processing method:

1) Casting Drum:The casting material is usually cast steel or cast iron.

2) Welding Drum:The drum core is made of seamless pipe or rolled with steel plate, welding flange and drum core, and eliminating welding stress before machining.

3. According to the number of drum segmentation

1) Double winding:Two wire ropes can be wrapped around a drum.The rope can be wound in the same direction or in the opposite direction

2) Multi-winding:The surface of a drum is divided into several drums by baffles, each of which can be used separately for winding rope.

Four drum hoist, four hook hoist. Four wire ropes are fixed on a drum, respectively, from the drum, from the bottom of the drum, when the drum rotates, one lifting container up, the other container down.

Product information

Drum features:

Processing Equipment: CNC Machining Center

Rotation Direction Of Grooves: Lefthand

Wire Rope Diameter: 3 MM~65 MM

Each Layer Laps: 20.5 laps

Layer: 5 Layer

Rope Groove Type: LEBUS Rope Groove

Number Of Ropes: Two

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the

hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,

In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the

company has formed a mature and stable, serialized product production mode.

Hebei Junke Machinery Techonlogy Co., Ltd was established in 2010. Now it is located in Shijiazhuang city, Hebei province, China. Our company covers more than 10000 square meters and it has very convenient transportation. There are more than 300 existing staff members  among who are 100 profressional technicists. We also have skilled workers and advanced processing equipments.

Our factory has more than 2000 sets of casting, forging, gear machining, sheet metal stamping, welding, heat treatment,machining and other advanced equipments. In recent years, we have introduced 80 machines of Germany CW1000 processing center, CNC four axis,five-axis linkage machining center, CNC punching machine,large CNC gear hobbing gear grinding machine, large CNC floor-type boring and milling machine, vacuum electron beam welding, CNC welding robots and other advanced processing equipments.

Our factory always adhere to business idea of "Honesty and Credibility＆Customer First". With high reputation, high quality products and a competitive price policy ,we provide our customers with satisfactory services.

We hope to establish long-term and stable business cooperation with domestic and foreign customers!
