Alloy Steel Grooved Drums Sleeves for Oil Well Drilling Rig Winch
LBS grooved winch drum advantage:
Each one circle layer of the grooved drum has two parallel groove
section and two groove section
Make wire rope spooling more smooth and uniform distribution of
load between each layer
P revent cross &mess in rope spooling working happening
Lower the rope damage, extend the rope life
description:
colour :red or require
Sling type:cable or wire
Power :electric or hydraulic
Rope capacity:1~10000m
Rope diameter:3~90MM
Winch drum type:LBS groove
Customization need more product technical parameters.
Drum features:
Product adoption LBS grooved drum, LBS groove system makes the
winding of wire rope smooth, and the load of each layer evenly
distributed,the technology greatly prolong the service life of wire
rope, reduce the wire rope damage, improves the safety of the
operation of the equipment, and reduces the problem of mechanical
equipment shutdown for changing rope.
Techinical parameters:
| technical parameters |
| input powerkW | JZ05 | JZ03 | JZ10-2 | JZ08-02 | JZ02-09 | JZ3-2 | JZ50D |
| 150 | 180 | 400 | 450 | 600 | 735 | 1100 |
| master rotor | Maximum Fast line tension(second floor)kN | 80 | 120 | 180 | 210 | 280 | 275 | 340 |
|
|
| diameter of the tube body x lengthmm | Φ345×590 | Φ356×912 | Φ450×912 | Φ450×912 | Φ580×1012 | Φ640×1237 | Φ685×1138 |
| brake drum (disc) diameter x length (thickness)mm | Φ810×210 | Φ970×260 | Φ1070×310 | Φ1070×310 | Φ1168×267 | Φ1168×265 | Φ1600×76 |
| For wire rope diameter mm | 22 | 22 | 29 | 29 | 32 | 32 | 35 |
| maximum speed of revolutionrpm | 450 | 450 | 450 | 450 | 450 | 370 | 370 |
| brake drum cooling way | air cooling | air cooling | Forced circulating water cooling | Forced circulating water cooling | Forced circulating water cooling | Forced circulating water cooling | air cooling |
About us:
Our company early introduction of advanced technology at home and
abroad, after years of research and development and improvement, in
the hoisting machinery multi-layer wire rope row rope field has
made a major breakthrough,
In 2010, the company obtained the production patent of double
folding rope groove drum, and founded its own brand - LBS. At
present, the company has formed a mature and stable,
serializedproduct production mode.

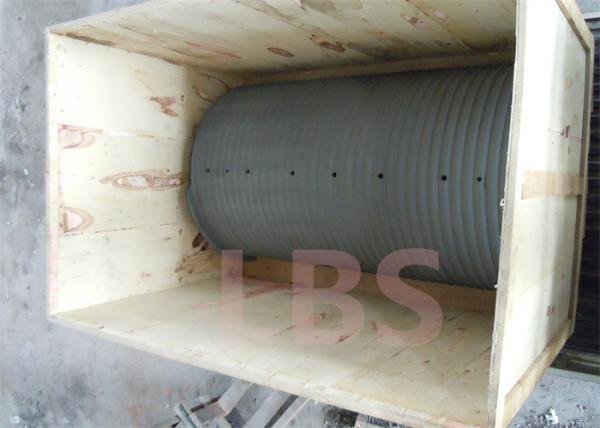

When the split type drum fence skin is installed, the split fence
skin sleeve is wrapped on the smooth slotless drum, and is closely
connected with the drum through bolts or welding, so that the
original smooth surface of the drum outside the surface becomes the
form of lebus double folding rope groove, which is convenient for
the application of winch modification or replacement of the drum
