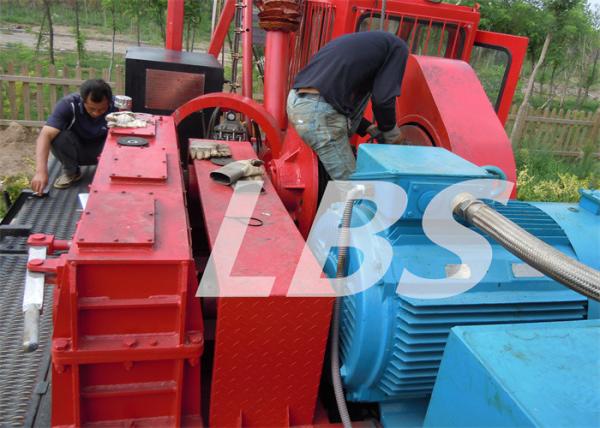

Oil Field Oil And Gas Well Bore Hole Mounted Mobile Drilling Oil
Rig Drawworks
Required Parameters:
- Wire rope diameter or cable diameter(mm)
- Inner diameter D1(mm)
- Outer diameter D2(mm)
- Width between the flanges L(mm)
- Rope capacity(m)
- Material:
- Rotation direction:left or right?
Drum features:
Product adoption LBS grooved drum, LBS groove system makes the
winding of wire rope smooth, and the load of each layer evenly
distributed,the technology greatly prolong the service life of wire
rope, reduce the wire rope damage, improves the safety of the
operation of the equipment, and reduces the problem of mechanical
equipment shutdown for changing rope.
Techinical parameters:
| technical parameters |
| input powerkW | JZ05 | JZ03 | JZ10-2 | JZ08-02 | JZ02-09 | JZ3-2 | JZ50D |
| 150 | 180 | 400 | 450 | 600 | 735 | 1100 |
| master rotor | Maximum Fast line tension(second floor)kN | 80 | 120 | 180 | 210 | 280 | 275 | 340 |
|
|
| diameter of the tube body x lengthmm | Φ345×590 | Φ356×912 | Φ450×912 | Φ450×912 | Φ580×1012 | Φ640×1237 | Φ685×1138 |
| brake drum (disc) diameter x length (thickness)mm | Φ810×210 | Φ970×260 | Φ1070×310 | Φ1070×310 | Φ1168×267 | Φ1168×265 | Φ1600×76 |
| For wire rope diameter mm | 22 | 22 | 29 | 29 | 32 | 32 | 35 |
| maximum speed of revolutionrpm | 450 | 450 | 450 | 450 | 450 | 370 | 370 |
| brake drum cooling way | air cooling | air cooling | Forced circulating water cooling | Forced circulating water cooling | Forced circulating water cooling | Forced circulating water cooling | air cooling |
Oil Field Oil And Gas Well Bore Hole Mounted Mobile Drilling Oil
Rig Drawworks
About us:
Our company early introduction of advanced technology at home and
abroad, after years of research and development and improvement, in
the hoisting machinery multi-layer wire rope row rope field has
made a major breakthrough,
In 2010, the company obtained the production patent of double
folding rope groove drum, and founded its own brand - LBS. At
present, the company has formed a mature and stable,
serializedproduct production mode.
When the split type drum fence skin is installed, the split fence
skin sleeve is wrapped on the smooth slotless drum, and is closely
connected with the drum through bolts or welding, so that the
original smooth surface of the drum outside the surface becomes the
form of lebus double folding rope groove, which is convenient for
the application of winch modification or replacement of the drum.
Our factory has more than 2000 sets of advanced equipment such as
casting, forging, gear processing, sheet metal stamping, riveting,
heat treatment and mechanical processing. In recent years, the
Germany CW1000 machining center, CNC four axis, five axis linkage
machining center, CNC punch, large CNC hobbing gear grinding
machine, large CNC floor boring and milling machine, Vacuum
electron beam welding, CNC welding robot and 80 roll machine and
other advanced processing equipment.
Shijiazhuang Jun Zhong Machinery Maufacturing Co.,Ltd has been
certified as “High & New-tech Enterprises of Hebei Province”,
“benchmark enterprises”, “Well-known Trademark of China”, “Famous
Trademark of Hebei Province”, and it has achieved many patents of
state level and National Torch Plan Projects.
