Customizable Carbon Steel Drum Hydraulic Crane Winch For Oil
Drilling

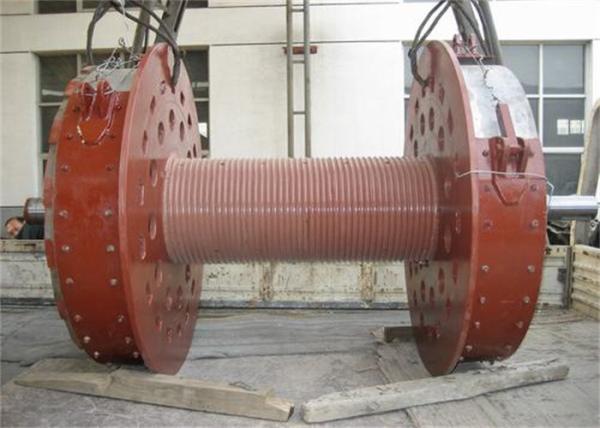

Product Structure
Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch
drum with flange, the LBS groove is cut directly into the body of
the drum, according to customers’ requirements, the flanges are
either welded or screw-bolted. groove geometry is determined by
rope construction, diameter and length, and by application. the
drum has the required mounting dimensions for the actual operating
conditions.
Product Application:
1. Offshore Marine machinery: Offshore petroleum crane winch,
Mooring winch, Traction winch, Man-riding winch, Anchor winch,
Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine,
Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist,
Petroleum workover rig, Trailermounted pumping unit winch , Logging
winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist,
Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking
winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry
crane,Crawler crane winch
The LeBus system is a method of controlling the spooling of wire
rope on a winch drum so that there is no practical limit to the
number of layers that can be spooled with safety, irrespective of
the severity of load and speed conditions or the sizes of rope and
drum.
Product Outline Drawing:
Product parameters
Model | Pull force (KN) | Rope speed (m/min) | Drum bottom Diamete (mm) | Difference of working pressures (Mpa) | Rope capacity (mm) | Diameter of steel rope (mm) | Model of hydraulic motor |
LBSW-DN10-10-00 | 10 | 0-40 | 250 | 13 | 100 | 10 | C2.5-5.5 |
| LBSW-DN12-18-00 | 12 | 0-40 | 250 | 12.5 | 100 | 12 | C2.5-5.5 |
| LBSW-DN14-20-00 | 20 | 0-35 | 300 | 12 | 100 | 14 | C2.5-5.5 |
| LBSW-DN15-30-00 | 30 | 0-30 | 350 | 14 | 100 | 15 | C3-5.5 |
| LBSW-DN22-65-00 | 65 | 0-35 | 550 | 15 | 200 | 22 | C5-5 |
| LBSW-DN24-80-00 | 80 | 0-30 | 600 | 16 | 200 | 24 | C5-5.5 |
| LBSW-DN30-120-00 | 120 | 0-30 | 750 | 16 | 200 | 30 | C7-5.5 |
| LBSW-DN38-180-00 | 180 | 0-30 | 860 | 16 | 200 | 38 | C7-5.5 |
Main Export Markets:
Asia / Australasia /Central / South America / Eastern Europe /
North America / Western Europe
FAQ:
Q1:What's your terms of payment? A. T/T 50% deposit and 50% before delivery. we will show you the
photos of products and packages before your pay the balance. |
Q2:What's your terms of delivery? A. EXW, FOB CIF CFR etc |
Q3:How about your delivery time? A. Generally,it will take about 10-30 days after receive your
advance payment.The specfit delivery time depends on your
order.quantitty. |
Q4:Can you produce according to the samples? A. Yes, we can produce by your sample and technical drawings, we
can build mold and fixtures. |
Q5: What's your sample policy? A. We can supply sample, but the customer have to pay the sample
cost and courier cost. |
Q6: Do you test all your goods before delivery? A. Yes, we have 100% test before delivery. |
Company introduction
Our company early introduction of advanced technology at home and
abroad, after years of research and development and improvement, in
the hoisting machinery multi-layer wire rope row rope field has
made a major breakthrough,
In 2010, the company obtained the production patent of double
folding rope groove drum, and founded its own brand - LBS. At
present, the company has formed a mature and stable,
serializedproduct production mode.
When the split type drum fence skin is installed, the split fence
skin sleeve is wrapped on the smooth slotless drum, and is closely
connected with the drum through bolts or welding, so that the
original smooth surface of the drum outside the surface becomes the
form of lebus double folding rope groove, which is convenient for
the application of winch modification or replacement of the drum.
Our factory has more than 2000 sets of advanced equipment such as
casting, forging, gear processing, sheet metal stamping, riveting,
heat treatment and mechanical processing. In recent years, the
Germany CW1000 machining center, CNC four axis, five axis linkage
machining center, CNC punch, large CNC hobbing gear grinding
machine, large CNC floor boring and milling machine,
Vacuum electron beam welding, CNC welding robot and 80 roll machine
and other advanced processing equipment.
