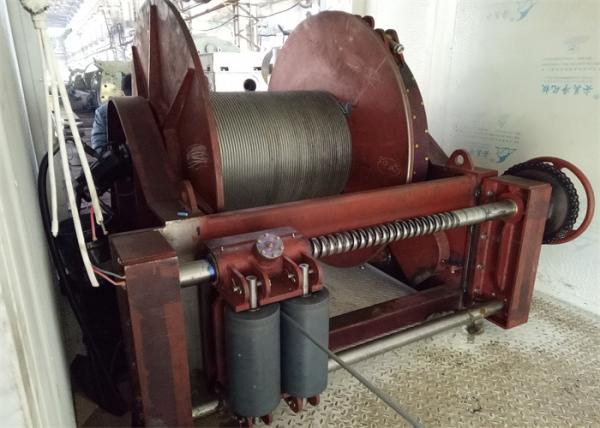

Custom-Made Fast Speed Electric Rope Winch For Mining Machine
Product introduce :
| Name | Custom-Made Fast Speed Electric Rope Winch For Mining Machine |
| other name: | mine winch/oil drilling winch |
| Hoist speed | 0.95-1.27m/s |
| Rotate speed | 720-960 r/min |
| Rope diameter | 3-30mm |
| Sling type | wire |
| Direction rotation | left or right |
| Application | hoist |
| Parameter | can be designed |
| Application | mining,oil drilling,or coal mine |
| Drum diameter | 900mm |
| Drum width | 600mm |
Winch Parameters
| Winch level | Winch parameters |
| Maximum fast rope tension | Rated input power | wire rope outside diameter | Drilling range |
| 114mmDrill pipe | 127mmDrill pipe |
| KN | KW(hp) | mm(in) | m |
| 10 | 115 | 110-200(150-270) | 22(7/8) | 500-1000 | 500-800 |
| 15 | 135 | 257-330(350-450) | 26(1) | 800-1500 | 700-1400 |
| 20 | 200 | 330-400(450-550) | 29(11/8) | 1200-2000 | 1100-1800 |
| 30 | 210 | 400-550(550-750) | 29(11/8) | 1600-3000 | 1500-2500 |
| 40 | 275 | 735(1000) | 32(11/4) | 2500-4000 | 2000-3200 |
| 50 | 340 | 1100(1500) | 35(13/8) | 3500-5000 | 2800-4500 |
| 70 | 485 | 1470(2000) | 38(11/2) | 4500-7000 | 4000-6000 |
| 90 | 575/550b | 2210(3000) | 42(11/2) | 6000-9000 | 5000-8000 |
| 120 | 770 | 2940(4000) | 52(2) | 7500-12000 | 7000-10000 |
| | | | | | |

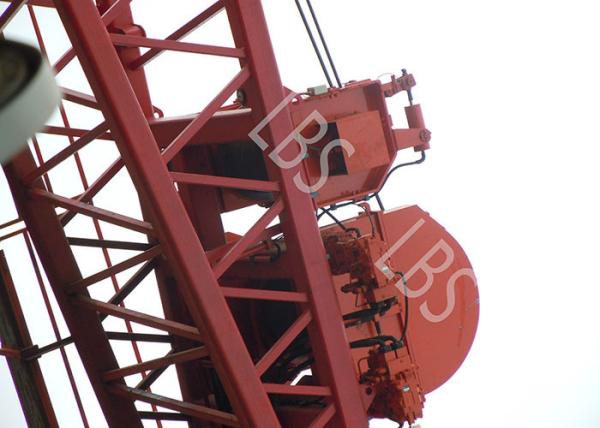

Characteristics of hydraulic winch
Hydraulic winch is mainly rated load larger winch, under normal
circumstances more than 10T to 5000T winch design hydraulic winch.
Its structure is mainly composed of hydraulic motor (low speed or
high speed motor), hydraulic normally closed multi-disc brake,
planetary gear box, clutch (optional), drum, supporting shaft,
frame, rope press (optional) and so on. Hydraulic motor has high
mechanical efficiency, large starting torque, and can request
according to the working condition of flow distribution with
different, still can design according to need directly integrated
in the motor oil distribution valve group, such as belt balance
valve, the overload valve, shuttle valve, high pressure control
reversing valve or other performance of the valve group, brake,
planetary gear box installed directly in the drum, Drum, support
shaft, frame design according to mechanical requirements, the
overall structure is simple and reasonable and has enough strength
and rigidity. Therefore, this series winch has the characteristics
of compact structure, small size, light weight and beautiful
appearance, and has the characteristics of good safety, high
efficiency, large starting torque, good low-speed stability, low
noise and reliable operation in performance.
Our Service
All products purchased in our company are guaranteed to keep in
good repair for one year.
If quality problems happen in guarantee period, our company will
maintain for free.
a. Before sending the machine, we will test and adjust, so you can
use directly when you get it.
b. Operation video & instruction will be sent to clients, to help
them use the machines better.
Additionally, our company provides technical support and fittings
for life. After-sales service isn't restricted by time and we
will solve your problems in time.
If you are caught in some problems when using our products, welcome
to contact us at any time.
a. Any problems occur while using, professional advice will be
offered.
b. All kinds of frequently used parts are supplied all the year
round.
