Mining Hoist Electric Power 15Ton Winch High Polymer Lebus Drum
Sleeve
Product Introduction
Materials of the sleeves:high polymer

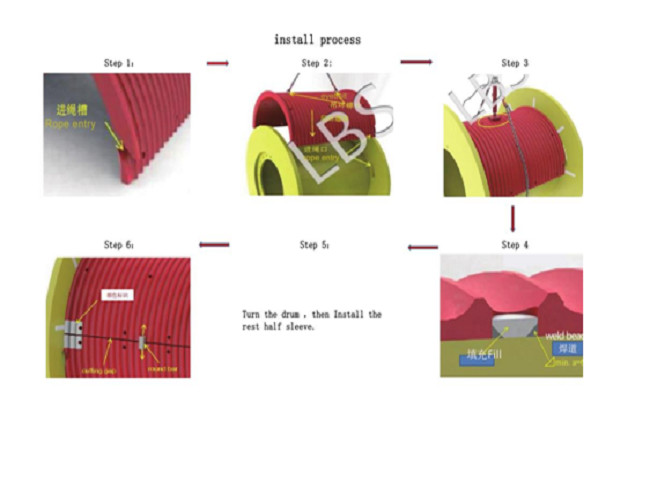

The use the sleeves:bolted to the smooth drum core of the winch
Rotation direction of the sleeves: Left or Right
Processing equipment: CNC machining center
Working environment: Indoor, outdoor, rain and dust environment
Working altitude: No more than 2000M
Working Temperature: -40~+50 CentigradWelded or bolted to the smooth drum core of the winch
Product application:
1. Marine ship machinery: offshore oil crane winch, mooring winch,
traction winch, towing winch, anchor winch and hydrological winch
2. Petroleum industry: oil drilling rig, oil logging truck winch,
oil workover rig, wiper, oil truck winch, etc
3. Hoisting machinery: crane, tower crane winch, gantry crane
winch, crawler crane winch, tire crane winch
4. Construction machinery: construction wall cleaning winch, single
drum winch and double drum winch
5. Other construction machinery: cable winch, tower crane, pile
driver, electric hydraulic winch
6. Mining machinery: dispatching winch, traction winch, inclined
shaft winch, etc
Characteristics and advantages of LEBUS
Ribas reel has a special key, is designed at the bottom of the reel
end flange (end insert) and extension pieces, they guide the wire
rope from the first layer to the second layer smoothly.
The folding groove makes the load evenly distributed between
layers, and the practice proves that the service life of the wire
rope is greatly prolonged. In fact, the test surface can extend
wire rope life by more than 500%. Reducing wire rope damage
increases safety and reduces machine downtime.
Disadvantages of LEBUS slots
The disadvantage of folding rope groove drum is that it is more
complex, so the price is a little more expensive than the spiral
rope groove drum. However, this additional cost is quickly
compensated for by the savings in wire rope, which is expensive and
takes up production time to replace
In some assignments,
Product information
| Product name | Mining Hoist Electric Power 15Ton Winch High Polymer Lebus Drum
Sleeve |
| Drum Quantity | Single Or Double |
| Drum Design | LBS Groove Or Spiral Groove |
| Material | Carbon Stainless And Alloy Steels |
| Size | Customization |
| Application Range | Construction Mining Terminal operation |
| Power Source | Electric and hydraulic |
| Rope Capacity | 100~300M |
| |
Technical parameters and application:
| No: | Wire diameter(mm): | Rotation direction | Main drum
diameter(mm) | Main drum length(mm) | Application |
| 1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch,
Towing winch
Tower crane |
| 2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch,
Lifting winch,Crawler crane |
| 3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Oil workover rig ,
Logging Winch |
| 4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch,
drawworks |
| 5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch,
Lifting equipment |
| 6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 | Offshore Crane,
Marine crane,Mooring winch |
