Wire Rope Smooth Winch Drum With Carbon Steel 20mm Lebus Grooved
Sleeve
Product Introduction
Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless
Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center
Product information
| name | Wire Rope Smooth Winch Drum With Carbon Steel 20mm Dia Lebus
Grooved Sleeve |
| about grooving | helical or LBS grooving |
| drum diameter and length | the sleeve must according to the drum parameter |
| rope diameter and length | the grooving desiged by the rope parameter |
| Material | your required material |
| installation | bolted or welding |
| more information | the detailed drawing if possible |
Technical parameters and application:
| No: | Wire diameter(mm): | Rotation direction | Main drum
diameter(mm) | Main drum length(mm) | Application |
| 1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch,
Towing winch
Tower crane |
| 2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch,
Lifting winch,Crawler crane |
| 3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Oil workover rig ,
Logging Winch |
| 4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch,
drawworks |
| 5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch,
Lifting equipment |
| 6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 | Offshore Crane,
Marine crane,Mooring winch |
Product include:
Split-type grooved sleeves
Integrated type grooved sleeves
the complete drum with flanges,machine-finished
the groove is cut directly into the body of the drum
according to customers' requirements,the flanges are either welded
or screw-bolted
the groove is available as either LBS-groove or helical-groove
groove geometry is determined by rope construction,diameter and
length and by application.

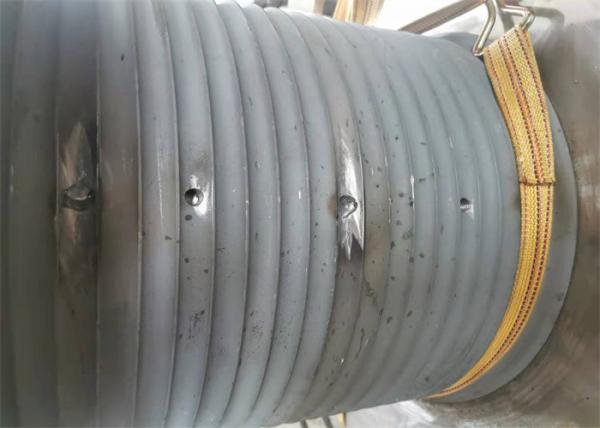

Lebus sleeve Processing way
the rope groove system is formed into a sleeve with groove shape,
also known as LEBUS sleeve. After finishing, it is cut into two
pieces along the direction of 180 degrees, and finally welded with
the drum body. This method can reduce machining time and improve
machining efficiency. When the rope groove needs to be replaced for
a long time, the outer sleeve can be replaced directly, saving 500%
of the cost
About company:
Early introduction the advanced technics form domestic and
foreign,after years R&D,our company had a major breakthrough in
lifting machinery's multilayers spooling field and obtaied the
production patent of LBS groove in 2010.Meanwhile we created our
brand -LBS. At the prosent, the company have formed a stable and
serialized production mode.
Required Parameters:
- Wire rope diameter or cable diameter(mm)
- Inner diameter D1(mm)
- Outer diameter D2(mm)
- Width between the flanges L(mm)
- Rope capacity(m)
- Material:
- Rotation direction:left or right?
