6mm Carbon Steel Wire Rope Hoist Lebus Grooved Drum Sleeves
Advantage Of The LBS Grroved
This system is still the most effective and perfect method to
prolong the life of wire rope. Tests have shown that the use with
Wire rope specifications match the rope groove, Lebus drum can
prolong the life of wire rope more than 500%.
LBS rope groove makes the load evenly distributed between layers,
and the practice proves that it greatly prolongs the life of wire
rope. In fact, the test surface can extend wire rope life by more
than 500%. Reducing wire rope damage increases safety and reduces
machine downtime.
Disadvantage Of The LBS Grroved
The disadvantage of LBS rope groove drum is that it is more
complex, so it is a little more expensive than the spiral rope
groove drum. However, this additional cost is quickly compensated
for by the savings in wire rope, which is expensive and takes up
production time to replace.
Advantage Sleeves
Generally, the tighter the wire rope is, the better it is wound.
The wire rope should withstand at least 2% of the breaking load or
10% of the operating load as recommended by LeBus. Of course, for
safety factor and wire rope design, must be prepared to withstand
the destructive load.
The design and manufacture of folding rope groove drum should meet
the special requirements of lifting operation, and the type of rope
groove should adapt to the length, diameter and structure type of
wire rope. Mechanical design, machining, design software,
mechanical engineer, equipment management, welding, hydraulic,
casting, sealing.
Technical parameters and application:
| No: | Wire diameter(mm): | Rotation direction | Main drum
diameter(mm) | Main drum length(mm) | Application |
| 1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch,
Towing winch
Tower crane |
| 2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch,
Lifting winch,Crawler crane |
| 3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Oil workover rig ,
Logging Winch |
| 4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch,
drawworks |
| 5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch,
Lifting equipment |
| 6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 | Offshore Crane,
Marine crane,Mooring winch |
Product Application:
1. Marine ship machinery: offshore oil crane winch, mooring winch,
traction winch, towing winch, anchor winch and hydrological winch
2. Petroleum industry: oil drilling rig, oil logging truck winch,
oil workover rig, wiper, oil truck winch, etc
3. Hoisting machinery: crane, tower crane winch, gantry crane
winch, crawler crane winch, tire crane winch
4. Construction machinery: construction wall cleaning winch, single
drum winch and double drum winch
5. Other construction machinery: cable winch, tower crane, pile
driver, electric hydraulic winch
6. Mining machinery: dispatching winch, traction winch, inclined
shaft winch, etc
Company introduction
Our company early introduction of advanced technology at home and
abroad, after years of research and development and improvement, in
the hoisting machinery multi-layer wire rope row rope field has
made a major breakthrough,
In 2010, the company obtained the production patent of double
folding rope groove drum, and founded its own brand - LBS. At
present, the company has formed a mature and stable,
serializedproduct production mode.

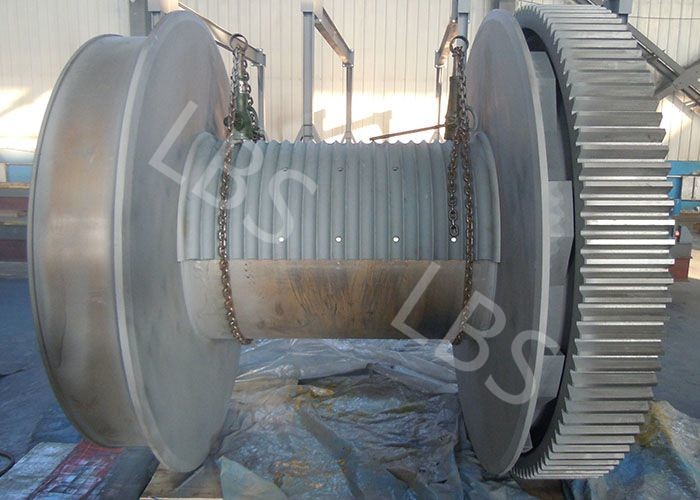

When the split type drum fence skin is installed, the split fence
skin sleeve is wrapped on the smooth slotless drum, and is closely
connected with the drum through bolts or welding, so that the
original smooth surface of the drum outside the surface becomes the
form of lebus double folding rope groove, which is convenient for
the application of winch modification or replacement of the drum.
Our factory has more than 2000 sets of advanced equipment such as
casting, forging, gear processing, sheet metal stamping, riveting,
heat treatment and mechanical processing. In recent years, the
Germany CW1000 machining center, CNC four axis, five axis linkage
machining center, CNC punch, large CNC hobbing gear grinding
machine, large CNC floor boring and milling machine,
Vacuum electron beam welding, CNC welding robot and 80 roll machine
and other advanced processing equipment.
