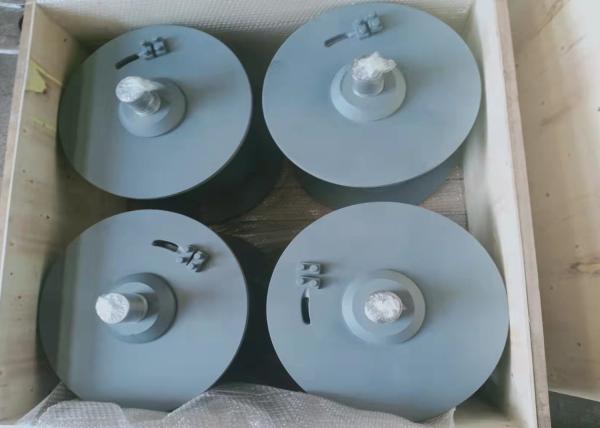

Customized Grooved Cable Drum Sleeve Used For 8mm Wire Rope Winding
Summary of winch
Winch, winding wire rope or chain with the drum to lift or pull
heavy lifting equipment, also known as winch. Winch can be used
alone, also can be used for lifting, road construction and mine
lifting machinery components.The drum is one of the most important parts on the winch
overview of the Lebus Grooved
LBS drum is a kind of groove for multi-layer winding of wire rope
introduced from abroad. Because of this rope groove in the drum
Most of the circumferential section is kept parallel to the flange
end face, only in a very small section and the flange end face
intersection.
However, there is a phenomenon of turning, it is named "folding
rope groove" too.
Years of practical use has proved that this kind of drum with
special rope groove structure can well solve the difficulty of
multi-layer winding rope
The double folding cable groove system ensures that the multi-layer
winding wire rope on the drum is completely smoothly drawn into and
rolled out of the drum.
Advantage Of The LBS Grroved
This system is still the most effective and perfect method to
prolong the life of wire rope. Tests have shown that the use with
Wire rope specifications match the rope groove, Lebus drum can
prolong the life of wire rope more than 500%.
LBS rope groove makes the load evenly distributed between layers,
and the practice proves that it greatly prolongs the life of wire
rope. In fact, the test surface can extend wire rope life by more
than 500%. Reducing wire rope damage increases safety and reduces
machine downtime.
Sleeves
When the split type drum fence skin is installed, the split fence
skin sleeve is wrapped on the smooth slotless drum, and is closely
connected with the drum through bolts or welding, so that the
original smooth surface of the drum outside the surface becomes the
form of lebus double folding rope groove, which is convenient for
the application of winch modification or replacement of the drum.
Product Introduction
Materials of The Sleeves:Steel or Polymer Nylon
The Use The Sleeves: Bolted to the smooth drum core of the winch
Rotation direction of the sleeves: Left or Right
Processing equipment: CNC machining center
Working environment: Indoor, outdoor, rain and dust environment
Working altitude: No more than 2000M
Working Temperature: -20~+50 Centigrad
Product Key Dimensions:
1) Wire rope or cable diameter (mm)
2) The inner diameter of the sleeves? (or the outer diameter of the smooth drum)
3) The length of the sleeves? (or the distance between two flanges ,no wear plates)
4) Material of the drum sleeves
5) The rotation direction of the drum groove?
6) Type of rope entry
Technical parameters and application:
| No: | Wire diameter(mm): | Rotation direction | Main drum
diameter(mm) | Main drum length(mm) | Application |
| 1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch,
Towing winch
Tower crane |
| 2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch,
Lifting winch,Crawler crane |
| 3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Oil workover rig ,
Logging Winch |
| 4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch,
drawworks |
| 5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch,
Lifting equipment |
| 6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 | Offshore Crane,
Marine crane,Mooring winch |
product introduce
| ther name: | construction industry electric Rope winche to lift building
materials |
| Hoist speed | 0.95-1.27m/s |
| Rotate speed | 720-960 r/min |
| Rope diameter | 3-30mm |
| Sling type | wire |
| Direction rotation | left or right |
| Application | hoist |
| Parameter | can be designed |
| Application | mining,oil drilling,or coal mine |
| Drum diameter | 900mm |
| Drum width | 600mm |

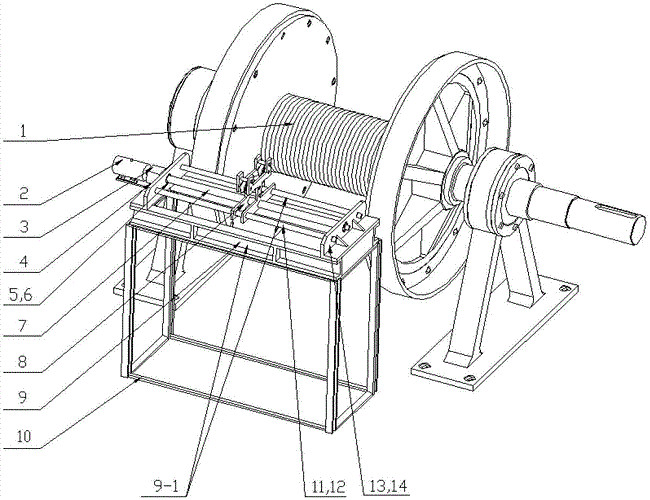

structure drawing
