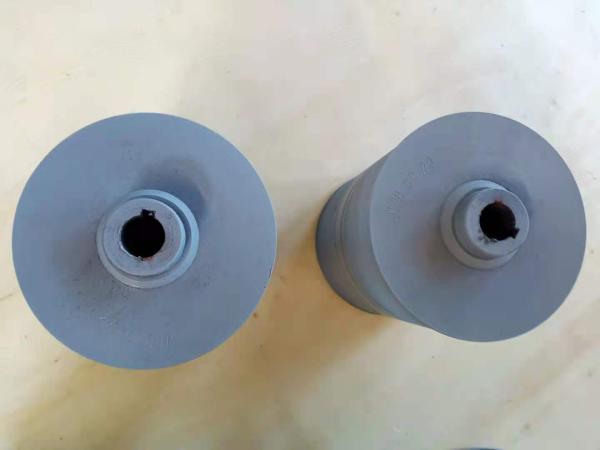

Carbon Steel Wire Rope Drum Double Grooved Winch Drum For Tower
Lifting Hoist
Grooved Winch Drum Introduction
Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless
Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center
Grooved Winch Drum Technical Parameters
| No: | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
| 1 | 3~8 | 3~10 | Lefthand,Righthand | >160 | <1000 |
| 2 | 10~16 | 12~20 | Lefthand,Righthand | >320 | <1000 |
| 3 | 18~24 | 20~80 | Lefthand,Righthand | >480 | <1000 |
| 4 | 26~32 | 100~120 | Lefthand,Righthand | >640 | <1000 |
| 5 | 34~40 | 150~200 | Lefthand,Righthand | >800 | <1000 |
| 6 | 42~50 | 240~400 | Lefthand,Righthand | >1000 | <1000 |
Service conditions of Lebus groove
1. The flanges of drum shall be perpendicular to drum wall at any
conditions,even under the load.
2. The rope must be kept under tension in the process of spooling
so that the rope will be crushed against groove wall. When spooling
can not meet this condition,a press roller shall be used.It is
generally recommended that the tension of the rope should be at
least 2% breaking tension or 10% working load.
3. The fleet angle range should generally never be more than 1.5
degrees and not less than 0.25 degrees.
4. When the wire rope released from the drum goes around the
sheave,the center of sheave should be over the center of drum.
5. The rope must be kept round,not loose,even under the maximum
load.
6. The rope must be anti-rotation structure.
Pls measure the change of rope diameter under different load
Grooved Winch Drum Structure
Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch
drum with flange, the LBS groove is cut directly into the body of
the drum, according to customers’ requirements, the flanges are
either welded or screw-bolted. groove geometry is determined by
rope construction, diameter and length, and by application. the
drum has the required mounting dimensions for the actual operating
conditions.
Product Application:
1. Offshore Marine machinery: Offshore petroleum crane winch,
Mooring winch, Traction winch, Man-riding winch, Anchor winch,
Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine,
Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist,
Petroleum workover rig, Trailermounted pumping unit winch , Logging
winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist,
Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking
winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry
crane,Crawler crane winch
