Customizable Lifting Equipment Lebus Grooved Wire Rope Single Winch
Drum

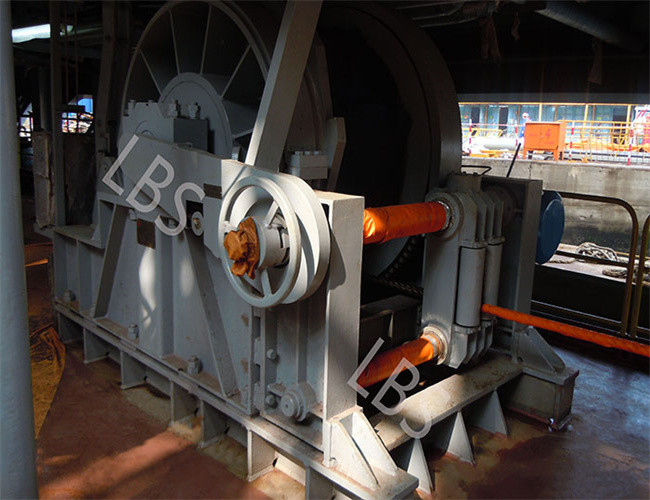

Product Introduction

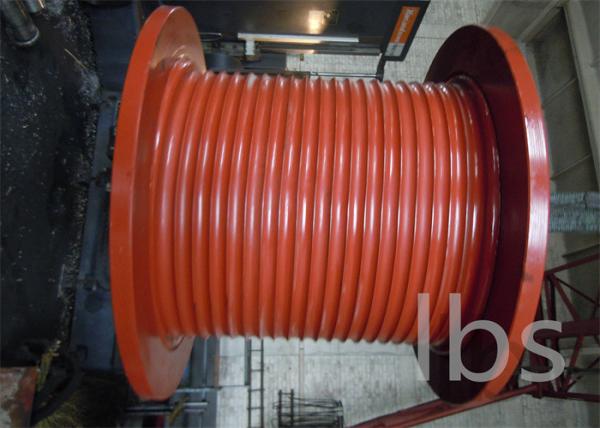

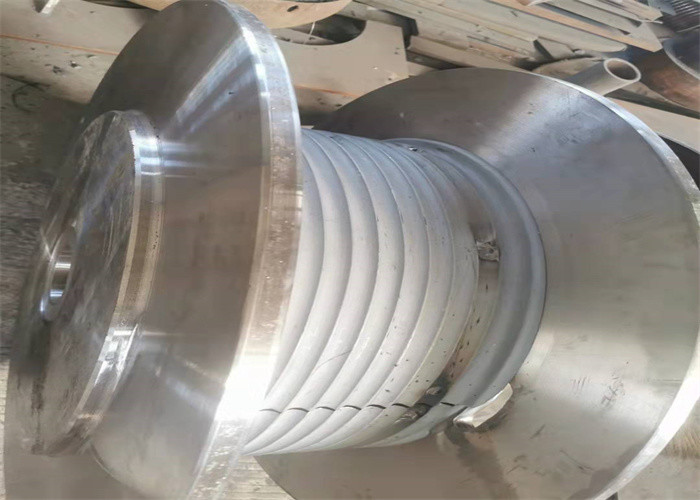

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless
Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining cente
Product information
| Product name | Customizable Lifting Equipment Lebus Grooved Wire Rope Single Winch
Drum |
| color | yellow /black /gray/as customes |
| size | 35*35*20 |
| Pull | 8/10/15/20 |
| layer | 1-7 |
| Wire rope capacity | 17-230 |
| Hydraulic motor | As customes |
| Planetary reduction ratio | I=5.23 |
| L/min | 36/56 |
Technical Parameters
No: | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
1 | 3~8 | 3~10 | Lefthand,Righthand | >160 | <1000 |
2 | 10~16 | 12~20 | Lefthand,Righthand | >320 | <1000 |
3 | 18~24 | 20~80 | Lefthand,Righthand | >480 | <1000 |
4 | 26~32 | 100~120 | Lefthand,Righthand | >640 | <1000 |
5 | 34~40 | 150~200 | Lefthand,Righthand | >800 | <1000 |
6 | 42~50 | 240~400 | Lefthand,Righthand | >1000 | <1000 |
Service conditions of Lebus groove
1. The flanges of drum shall be perpendicular to drum wall at any
conditions,even under the load.
2. The rope must be kept under tension in the process of spooling
so that the rope will be crushed against groove wall. When spooling
can not meet this condition,a press roller shall be used.It is
generally recommended that the tension of the rope should be at
least 2% breaking tension or 10% working load.
3. The fleet angle range should generally never be more than 1.5
degrees and not less than 0.25 degrees.
4. When the wire rope released from the drum goes around the
sheave,the center of sheave should be over the center of drum.
5. The rope must be kept round,not loose,even under the maximum
load.
6. The rope must be anti-rotation structure.
7. Pls measure the change of rope diameter under different load.
Product advantage:
Compared with the general non grooved (smooth) drum and spiral
grooved drum, the Grooved Steel Drum Sleeves has obvious advantages
in the neat winding of multi-layer steel wire rope. Lbs double fold
rope groove makes the winding of steel wire rope more smooth and
the load between layers is evenly distributed, reduces the
irregular, disorderly winding and rope biting in the process of
steel wire rope arrangement, reduces the damage of steel wire rope,
prolongs the service life of steel wire rope, improves the safety
of equipment operation, and avoids the shutdown time of mechanical
equipment due to disorderly rope replacement.
LEBUS groove design drawing
