    Gray Carbon Steel Cable Winch Drum Lebus Grooved For Mining

    Ask Lasest Price
    Brand Name : LBS
    Model Number : LBSD Series
    Certification : CCS, ABS
    Price : USD, EUR, RMB / Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 Pieces Per Month
    Delivery Time : General Order 15-30 Days
    • Product Details
    • Company Profile

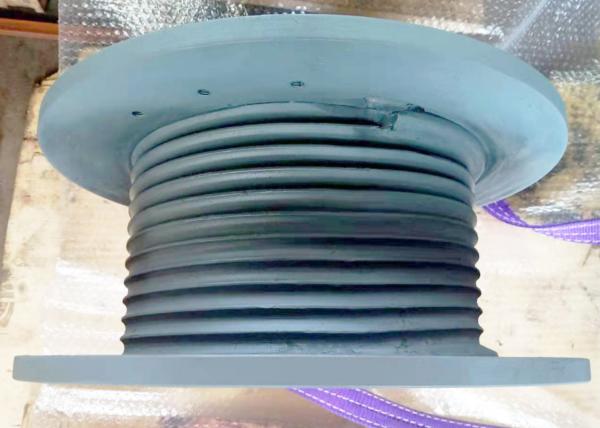

    Gray Carbon Steel Cable Winch Drum Lebus Grooved For Mining

    Carbon Steel Wire Rope Grooved Hoisting Drum For Mining


    Technical Parameters

    No:Wire diameter(mm)Pulling Force(KN)Rotation DirectionDrum Diameter(mm)Drum Length(mm)
    13~83~10Lefthand,Righthand>160<1000
    210~1612~20Lefthand,Righthand>320<1000
    318~2420~80Lefthand,Righthand>480<1000
    426~32100~120Lefthand,Righthand>640<1000
    534~40150~200Lefthand,Righthand>800<1000
    642~50240~400Lefthand,Righthand>1000<1000

    Grooved Hoisting Drum Structure

    Groove Drum Composition: Drum core, Flanges, Shaft, Etc
    Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.


    Product Application:

    1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
    2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
    3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
    4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
    5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
    6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch


    Our Service

    All products purchased in our company are guaranteed to keep in good repair for one year.
    If quality problems happen in guarantee period, our company will maintain for free.
    a. Before sending the machine, we will test and adjust, so you can use directly when you get it.
    b. Operation video & instruction will be sent to clients, to help them use the machines better.
    Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we
    will solve your problems in time.
    If you are caught in some problems when using our products, welcome to contact us at any time.
    a. Any problems occur while using, professional advice will be offered.
    b. All kinds of frequently used parts are supplied all the year round.


    Company introdction

    Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,

    In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.

    When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of lebus double folding rope groove, which is convenient for the application of winch modification or replacement of the drum
