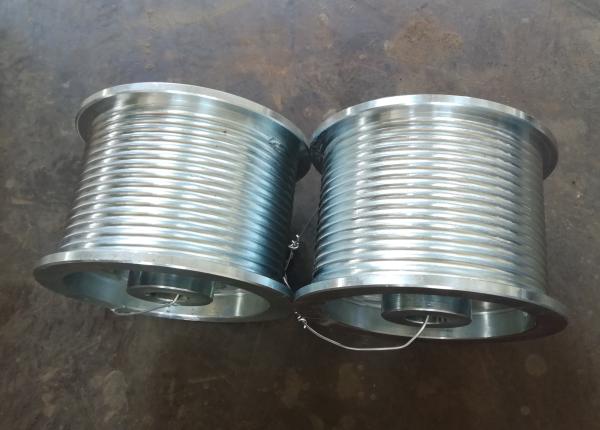

Mine lifiting Object High perfornabce wire rope Carbon Steel
grooved Winch Drum
Product Introduction
Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless
Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center
Technical Parameters
| No: | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
| 1 | 3~8 | 3~10 | Lefthand,Righthand | >160 | <1000 |
| 2 | 10~16 | 12~20 | Lefthand,Righthand | >320 | <1000 |
| 3 | 18~24 | 20~80 | Lefthand,Righthand | >480 | <1000 |
| 4 | 26~32 | 100~120 | Lefthand,Righthand | >640 | <1000 |
| 5 | 34~40 | 150~200 | Lefthand,Righthand | >800 | <1000 |
| 6 | 42~50 | 240~400 | Lefthand,Righthand | >1000 | <1000 |
Product information
| Product Name | Mine lifiting Object High perfornabce wire rope Carbon Steel
grooved Winch Drum |
| Processing Type | forging |
| Surface | Grinding |
| Heat treatment | Anneal, Quenchining & Tempering...... |
| Material | SS,POM,Aluminium.... |
| Machine | CNC |
| Parameter | as requirement |
FAQ:
Q1.Are you a factory or a trading company?What can you provide?
We are a factory locates in industrial belt of Shijiazhuang
City,our main products are hydraulic orbit motors,hydraulic
winches, hydraulic brakes, hydraulic stee hole punchers, hydraulic
steerings, etc.
Q2. I want to buy your product,how can I pay?
We support T/T,Paypal, Western Union,also you can pay through
Alibaba trade assurance
Q3.How about the warranty?
We promise to supply high quality products and professional
after-sales service.We can supply technical support as long as you
need,beyond that, we also offer six months of warranty.
Q4.If we don't find what we want on your website, what should we
do?
You can start a conversation to us or send us email about the
descriptions and pictures of the products you need, We will check
if we can supply.
Q5.Can we buy 1pc of each item for quality testing?
Yes, we understand quality test is important and we are glad to
send 1pc for quality testing
Our Service
All products purchased in our company are guaranteed to keep in
good repair for one year.
If quality problems happen in guarantee period, our company will
maintain for free.
a. Before sending the machine, we will test and adjust, so you can
use directly when you get it.
b. Operation video & instruction will be sent to clients, to help
them use the machines better.
Additionally, our company provides technical support and fittings
for life. After-sales service isn't restricted by time and we
will solve your problems in time.
If you are caught in some problems when using our products, welcome
to contact us at any time.
a. Any problems occur while using, professional advice will be
offered.
b. All kinds of frequently used parts are supplied all the year
round.
