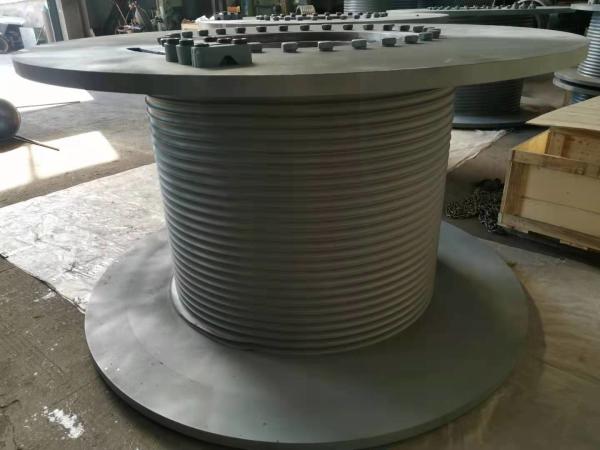

Heavy Duty Low Temperature Material 40mm Wire Rope Winch Drum With Grooves

Product Description

Drum is one of the important parts of the crane,it is used to wind the wire rope in the lifting mechanism or traction mechanism, the driving force provided by the driving device to the wire rope, and the rotary movement of the driving device into the required linear movement.

The drum used on the crane is mostly cylindrical. At both ends of the drum, most of the plate support, a hole in the middle of the plate, there is a shaft in the middle, the shaft is divided into two kinds, one is through the long shaft, the other is a short shaft at both ends of the drum.

Drum according to the number of rope winding layer, divided into single layer winding and multi-layer winding two. The rope groove increases the contact area of the wire rope, ensures the orderly arrangement of the wire rope, prevents mutual friction, and improves the service life of the wire rope. Generally, the spiral rope groove is used for single-layer winding, and the LEbus rope groove is used for multi-layer winding.

Product Material

Alloy steel, cast steel, stainless steel,aluminum,all kinds of high-strength steel Q345B/D/E, Q420, Q460, 15CrMo, 20GrMo, 40GrMo, 42GrMo, etc

Product Advantage

LBS grooved wire rope winch drum, solved the problem of wire rope spooling.

Compared with ordinary cordless groove (smooth) drum and helical rope groove drum, LBS rope groove has obvious advantages in the multi-layer wire rope spooling, LBS special groove system makes the spooling of wire rope smooth, and the load of each layer evenly distributed, extend the service life of rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.

Technical Parameters

Processing Technic

Product Application

Winch drum is used in metallurgy, Marine engineering, mining, railway, military industry, aerospace, urban construction and other places.

1. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
3. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch.

Hebei Junke Machinery Techonlogy Co., Ltd was established in 2010. Now it is located in Shijiazhuang city, Hebei province, China. Our company covers more than 10000 square meters and it has very convenient transportation. There are more than 300 existing staff members  among who are 100 profressional technicists. We also have skilled workers and advanced processing equipments.

Our factory has more than 2000 sets of casting, forging, gear machining, sheet metal stamping, welding, heat treatment,machining and other advanced equipments. In recent years, we have introduced 80 machines of Germany CW1000 processing center, CNC four axis,five-axis linkage machining center, CNC punching machine,large CNC gear hobbing gear grinding machine, large CNC floor-type boring and milling machine, vacuum electron beam welding, CNC welding robots and other advanced processing equipments.

Our factory always adhere to business idea of "Honesty and Credibility＆Customer First". With high reputation, high quality products and a competitive price policy ,we provide our customers with satisfactory services.

We hope to establish long-term and stable business cooperation with domestic and foreign customers!
