Customizable Single Drum Multilayer Winding Rope Winch Drum For Lifting

Product Structure

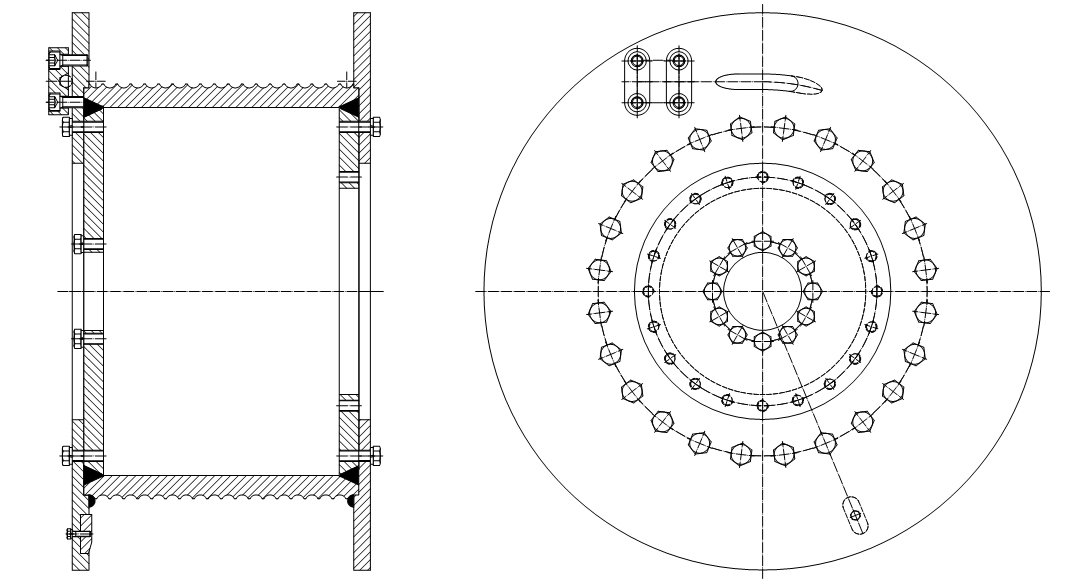

The rope winch drum includes: drum core, flange, brake disc, rope clamps, rope blocking device and bolts etc.
IWinch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.

Product Advantage

The winding of steel wire rope on the drum is divided into single layer and multi-layer. Single layer winding means that only one layer of steel wire rope is wound on the drum, which is easy to control; The multi-layer drum is used for winding multi-layer steel wire rope on the drum, which is used for occasions where the lifting height is particularly large or the mechanism is particularly compact. This is relatively difficult, mainly due to the rope disorder in the later stage of multi-layer winding.

The Lebus rope groove has obvious advantages in the neat winding of multi-layer steel wire rope compared with the general non rope groove (smooth) drum and spiral rope groove drum. Lbs double fold rope groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement.

Technical Parameters

FAQ

Processing Technic

Hebei Junke Machinery Techonlogy Co., Ltd was established in 2010. Now it is located in Shijiazhuang city, Hebei province, China. Our company covers more than 10000 square meters and it has very convenient transportation. There are more than 300 existing staff members  among who are 100 profressional technicists. We also have skilled workers and advanced processing equipments.

Our factory has more than 2000 sets of casting, forging, gear machining, sheet metal stamping, welding, heat treatment,machining and other advanced equipments. In recent years, we have introduced 80 machines of Germany CW1000 processing center, CNC four axis,five-axis linkage machining center, CNC punching machine,large CNC gear hobbing gear grinding machine, large CNC floor-type boring and milling machine, vacuum electron beam welding, CNC welding robots and other advanced processing equipments.

Our factory always adhere to business idea of "Honesty and Credibility＆Customer First". With high reputation, high quality products and a competitive price policy ,we provide our customers with satisfactory services.

We hope to establish long-term and stable business cooperation with domestic and foreign customers!
