Large Oil Rig Single Arm Oil Rig Drawworks Workover
Product Structure

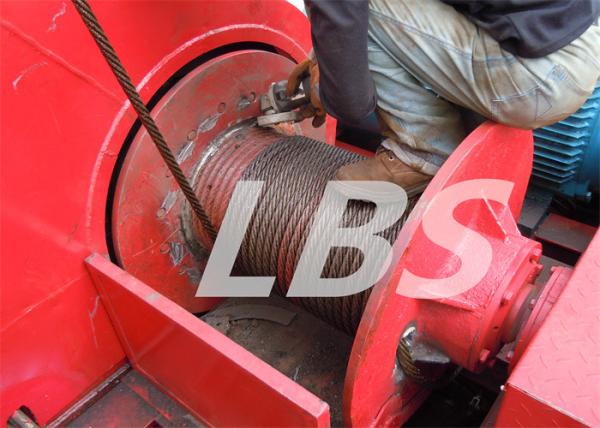

Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch
drum with flange, the LBS groove is cut directly into the body of
the drum, according to customers’ requirements, the flanges are
either welded or screw-bolted. groove geometry is determined by
rope construction, diameter and length, and by application. the
drum has the required mounting dimensions for the actual operating
conditions.
Product Application:
1. Offshore Marine machinery: Offshore petroleum crane winch,
Mooring winch, Traction winch, Man-riding winch, Anchor winch,
Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine,
Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist,
Petroleum workover rig, Trailermounted pumping unit winch , Logging
winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist,
Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking
winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry
crane,Crawler crane winch
Large Oil Rig Single Arm Drawworks Oil Field Drilling Rig And
Workover
Signle / Double Drum Winch description:
colour :red or require
Sling type:cable or wire
Power :electric or hydraulic
Rope capacity:1~10000m
Rope diameter:3~90MM
Winch drum type:LBS groove
Customization need more product technical parameters.
Drum features:
Product adoption LBS grooved drum, LBS groove system makes the
winding of wire rope smooth, and the load of each layer evenly
distributed,the technology greatly prolong the service life of wire
rope, reduce the wire rope damage, improves the safety of the
operation of the equipment, and reduces the problem of mechanical
equipment shutdown for changing rope.
Techinical parameters:
| technical parameters |
| input powerkW | JZ05 | JZ03 | JZ10-2 | JZ08-02 | JZ02-09 | JZ3-2 | JZ50D |
| 150 | 180 | 400 | 450 | 600 | 735 | 1100 |
| master rotor | Maximum Fast line tension(second floor)kN | 80 | 120 | 180 | 210 | 280 | 275 | 340 |
|
|
| diameter of the tube body x lengthmm | Φ345×590 | Φ356×912 | Φ450×912 | Φ450×912 | Φ580×1012 | Φ640×1237 | Φ685×1138 |
| brake drum (disc) diameter x length (thickness)mm | Φ810×210 | Φ970×260 | Φ1070×310 | Φ1070×310 | Φ1168×267 | Φ1168×265 | Φ1600×76 |
| For wire rope diameter mm | 22 | 22 | 29 | 29 | 32 | 32 | 35 |
| maximum speed of revolutionrpm | 450 | 450 | 450 | 450 | 450 | 370 | 370 |
| brake drum cooling way | air cooling | air cooling | Forced circulating water cooling | Forced circulating water cooling | Forced circulating water cooling | Forced circulating water cooling | air cooling |
