LBS drum is a kind of groove for multi-layer winding of wire rope
introduced from abroad. Because of this rope groove in the drum
Most of the circumferential section is kept parallel to the flange
end face, only in a very small section and the flange end face
intersection, so the rope groove must
However, there is a phenomenon of turning, hence the name "folding
rope groove".
Years of practical use has proved that this kind of drum with
special rope groove structure can well solve the difficulty of
multi-layer winding rope
The double folding cable groove system ensures that the multi-layer
winding wire rope on the drum is completely smoothly drawn into and
rolled out of the drum, and can be
This system is still the most effective and perfect method to
prolong the life of wire rope. Tests have shown that the use with
Wire rope specifications match the rope groove, Lebus drum can
prolong the life of wire rope more than 500%.
Our factory has more than 2000 sets of advanced equipment such as
casting, forging, gear processing, sheet metal stamping, riveting,
heat treatment and mechanical processing. In recent years, the
Germany CW1000 machining center, CNC four axis, five axis linkage
machining center, CNC punch, large CNC hobbing gear grinding
machine, large CNC floor boring and milling machine, Vacuum
electron beam welding, CNC welding robot and 80 roll machine

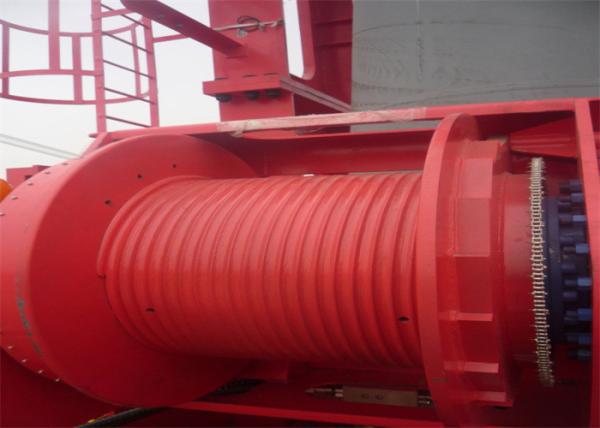

Grooved Drum Sleeves Introduction
Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless
Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center
Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch
drum with flange, the LBS groove is cut directly into the body of
the
drum, according to customers’ requirements, the flanges are either
welded or screw-bolted. groove geometry is determined by rope
construction, diameter and length, and by application. the drum has
the required mounting dimensions for the actual operating
conditions.
Product Application:
1. Offshore Marine machinery: Offshore petroleum crane winch,
Mooring winch, Traction winch, Man-riding winch, Anchor winch,
Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine,
Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist,
Petroleum workover rig, Trailermounted pumping unit winch , Logging
winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist,
Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking
winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry
crane,Crawler crane winch
Technical Parameters
No: | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
1 | 3~8 | 3~10 | Lefthand,Righthand | >160 | <1000 |
2 | 10~16 | 12~20 | Lefthand,Righthand | >320 | <1000 |
3 | 18~24 | 20~80 | Lefthand,Righthand | >480 | <1000 |
4 | 26~32 | 100~120 | Lefthand,Righthand | >640 | <1000 |
5 | 34~40 | 150~200 | Lefthand,Righthand | >800 | <1000 |
6 | 42~50 | 240~400 | Lefthand,Righthand | >1000 | <1000 |
Company introduction
Our company early introduction of advanced technology at home and
abroad, after years of research and development and improvement, in
the hoisting machinery multi-layer wire rope row rope field has
made a major breakthrough,
In 2010, the company obtained the production patent of double
folding rope groove drum, and founded its own brand - LBS. At
present, the company has formed a mature and stable,
serializedproduct production mode.
