Wrie Rope High Polymer Or Glass Fibre Lebus Groove Sleeves For
Cable Winch
Advantage of Lebus Grooved:
1,Compared with the general non grooved (smooth) drum and spiral
grooved drum, the Grooved Steel Drum Sleeves has obvious advantages
in the neat winding of multi-layer steel wire rope. Lbs double fold
rope groove makes the winding of steel wire rope more smooth and
the load between layers is evenly distributed, reduces the
irregular, disorderly winding and rope biting in the process of
steel wire rope arrangement, reduces the damage of steel wire rope,
prolongs the service life of steel wire rope, improves the safety
of equipment operation, and avoids the shutdown time of mechanical
equipment due to disorderly rope replacement.
2,This system is still the most effective and perfect method to
prolong the life of wire rope. Tests have shown that the use with
Wire rope specifications match the rope groove, Lebus drum can
prolong the life of wire rope more than 500%.
LBS rope groove makes the load evenly distributed between layers,
and the practice proves that it greatly prolongs the life of wire
rope. In fact, the test surface can extend wire rope life by more
than 500%. Reducing wire rope damage increases safety and reduces
machine downtime.
Technical Parameters
No: | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
1 | 3~8
| 3~10 | Lefthand,Righthand | >160 | <1000 |
2 | 10~16
| 12~20 | Lefthand,Righthand | >320 | <1000 |
3 | 18~24
| 20~80 | Lefthand,Righthand | >480 | <1000 |
4 | 26~32
| 100~120 | Lefthand,Righthand | >640 | <1000 |
5 | 34~40
| 150~200 | Lefthand,Righthand | >800 | <1000 |
6 | 42~50
| 240~400 | Lefthand,Righthand | >1000 | <1000 |

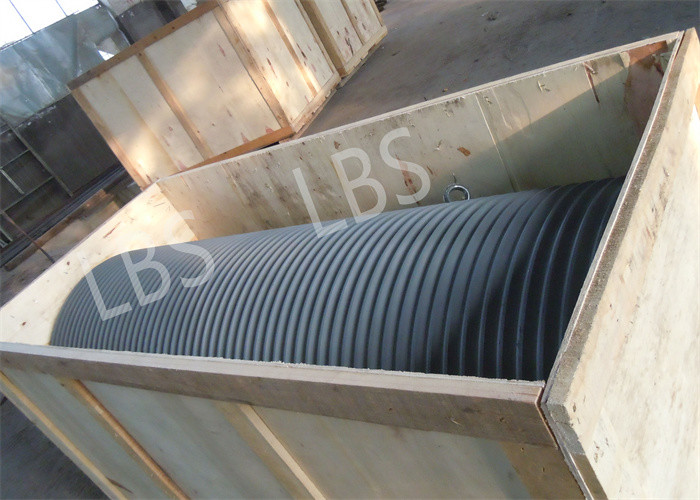

Advantage of Drum Sleeves
When the split type drum fence skin is installed, the split fence
skin sleeve is wrapped on the smooth slotless drum, and is closely
connected with the drum through bolts or welding, so that the
original smooth surface of the drum outside the surface becomes the
form of lebus double folding rope groove, which is convenient for
the application of winch modification or replacement of the drum.
LBS Drum required parameters
Sleeve Diameter of wire rope or cable
Diameter of smooth drum (inside diameter of rope groove)
Outer diameter of rope groove drum
Length between drum flanges
Rope capacity
Rope groove rotation (left or right)
LBS drum leather material required
Whether drawings or other requirements are provided
Production Equipment
Our factory has more than 2000 sets of advanced equipment such as
casting, forging, gear processing, sheet metal stamping, riveting,
heat treatment and mechanical processing. In recent years, the
Germany CW1000 machining center, CNC four axis, five axis linkage
machining center, CNC punch, large CNC hobbing gear grinding
machine, large CNC floor boring and milling machine, Vacuum
electron beam welding, CNC welding robot and 80 roll machine
Product Application:
1. Offshore Marine machinery: Offshore petroleum crane winch,
Mooring winch, Traction winch, Man-riding winch, Anchor winch,
Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine,
Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist,
Petroleum workover rig, Trailermounted pumping unit winch , Logging
winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist,
Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking
winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry
crane,Crawler crane winch
Company introduction
Our company early introduction of advanced technology at home and
abroad, after years of research and development and improvement, in
the hoisting machinery multi-layer wire rope row rope field has
made a major breakthrough,
In 2010, the company obtained the production patent of double
folding rope groove drum, and founded its own brand - LBS. At
present, the company has formed a mature and stable,
serializedproduct production mode.
