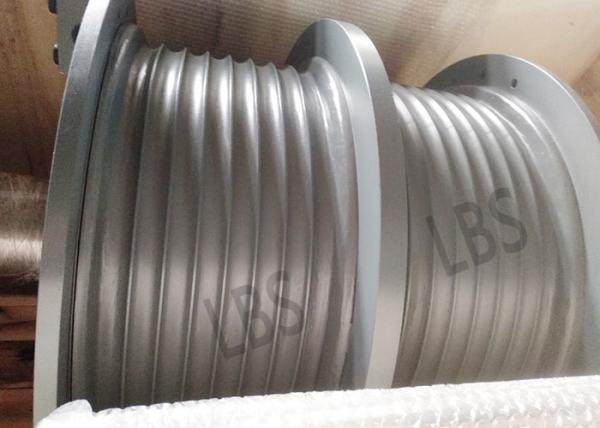

2 Speed Hot Dip Galvanized LBS Grooved Double Drum For Wash Wall
Machine
overview
| Product name | Double drum |
| Drum Quantity | Double |
| Drum Design | LBS Groove |
| Materia |
| Size | 10-500mm |
| Application Range | Mining |
| Power Source | Electric and hydraulic |
| Rope Capacity | 500M |
| |
Advantages of LEBUS GROOVE
Double folding rope groove makes the wire rope winding smooth, load
evenly distributed between each layer, practice has proved that
this technology greatly prolongs the service life of wire rope,
data shows that can prolong the life of wire rope more than 500%,
reduce wire rope damage, improve safety, and reduce the mechanical
equipment for rope replacement downtime.
Double drum winch
In order to meet the requirements of , the winch is usually
designed as a multi-shaft drive and separate transportation, which
not only makes the system complex, but also increases the cost and
installation workload. To this end, the transmission scheme of the
winch, power input mode and the structure of the winch frame have
done pioneering work, my company designed a multi drums winch. The
winch is mainly composed of base, winch frame, roller shaft, sand
drum shaft, shaft drive boxes, disc brake, crash-proof crown
device, main brake mechanism and automatic driller, etc, and power
shift between the input shaft and the shaft adopts mechanical
transmission, drive shaft and roller shifting between adopts
pneumatic clutch to shift, with four are blocked, reverse gear.
Finite element software was used to simulate and analyze the drum
shaft and check its strength and stiffness. The analysis and check
results show that the design of the drum and frame of the winch is
reasonable and meets the practical work requirements.
LEBUS DRUMS
In the winch, the wire rope plays an irreplaceable effect, so how
can we do to avoid the phenomenon of wire rope there is disorderly
rope? As a winch, it also makes some methods to avoid wire rope
chaos, its drum has more obvious groove, double drum winch, these
grooves can be better fixed wire rope.
Successful cases
our production of double wire groove tube, and winch rope groove
plate assembly, now widely used in petroleum machinery, mining
machinery, ships, ports, lifting machinery, lifting machinery,
etc., and with daqing oilfield, shengli oilfield, dagang oilfield,
zhongyuan oilfield, liaohe oilfield oilfield, nanyang oil factory,
big companies such as sany, established a long-term, stable
relations of cooperation, Products are also exported to the United
States, Canada, Brazil and so on. Our factory can design and
manufacture various specifications of folding rope groove tube,
rope groove plate and winch according to the requirements of users,
but also can provide on-site installation.
LBSD Series Grooved drum :
About Size:
We can manufacture all sizes of drums. From now, we have finished
the drums from 50mm to 2000mm in diameter. And its length range is
from
100mm to 2000mm.
Some parameters:
| Rope diameter(mm) | 5 12 24 32 42 58 |
| Grooved drum diameter(mm) | 80 150 300 500 800 1100 |
| Width between the flanges flanges(mm) | 150 280 300 460 750 1000 |
| Rotation direction | L R R L L R |
| Number of layers | 3 2 4 6 8 8 |
| Rope capacity(m) | 18 19 43 127 360 1800 |
Our equipment
Our factory has more than 2000 sets of advanced equipment such as
casting, forging, gear processing, sheet metal stamping, riveting,
heat treatment and mechanical processing. In recent years, the
Germany CW1000 machining center, CNC four axis, five axis linkage
machining center, CNC punch, large CNC hobbing gear grinding
machine, large CNC floor boring and milling machine, Vacuum
electron beam welding, CNC welding robot and 80 roll machine and
other advanced processing equipment.
Required Parameters:
- Wire rope diameter or cable diameter(mm)
- Inner diameter D1(mm)
- Outer diameter D2(mm)
- Width between the flanges L(mm)
- Rope capacity(m)
- Material:
- Rotation direction:left or right?
Why choose us
Why choose us
Professional engineer team and sales team
We have a professional team of engineers and sales teams, most of
which have more than 10 jobs to experience
Imported equipment
We have the world's advanced production equipment
Fast lead time
Small and medium orders can be delivered within 20 days, large
orders 30-35 days
One-stop service
We provide production operations and assembly services
High quality and factory price
We have ISO9001 international quality management system, as well as
China production cost control experience, we can help you save
20%~30% of the production cost.
Good after-sales service
Our after-sales service can be up to three years, customers have
more than 15 years of cooperation with us, and received consistent
praise
