Tower Crane Drum 1500mm Large Diameter Cable Steel Metaril LBS
Grooved Winch Drum
overview
| Product name | Cable winch drum |
| Drum Quantity | Single |
| Drum Design | LBS Groove |
| Material | Carbon Stainless Q355B |
| Size | Customization |
| Application Range | Construction Mining Terminal operation |
| Power Source | Electric and hydraulic |
| Rope Capacity | 500M |
| |
Grooved Winch Drum
Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum,
High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center

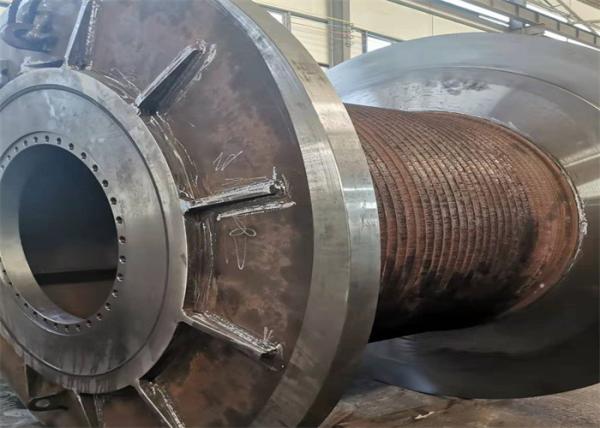

Product Structure
Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch
drum with flange, the LBS groove is cut directly into the body of
the drum, according to customers’ requirements, the flanges are
either welded or screw-bolted. groove geometry is determined by
rope construction, diameter and length, and by application. the
drum has the required mounting dimensions for the actual operating
conditions.
LBSD Series Grooved drum :
About Size:
We can manufacture all sizes of drums. From now, we have finished
the drums from 50mm to 2000mm in diameter. And its length range is
from
100mm to 2000mm.
Some parameters:
| Rope diameter(mm) | 5 12 24 32 42 58 |
| Grooved drum diameter(mm) | 80 150 300 500 800 1100 |
| Width between the flanges flanges(mm) | 150 280 300 460 750 1000 |
| Rotation direction | L R R L L R |
| Number of layers | 3 2 4 6 8 8 |
| Rope capacity(m) | 18 19 43 127 360 1800 |
Our equipment
Our factory has more than 2000 sets of advanced equipment such as
casting, forging, gear processing, sheet metal stamping, riveting,
heat treatment and mechanical processing. In recent years, the
Germany CW1000 machining center, CNC four axis, five axis linkage
machining center, CNC punch, large CNC hobbing gear grinding
machine, large CNC floor boring and milling machine, Vacuum
electron beam welding, CNC welding robot and 80 roll machine and
other advanced processing equipment.
Required Parameters:
- Wire rope diameter or cable diameter(mm)
- Inner diameter D1(mm)
- Outer diameter D2(mm)
- Width between the flanges L(mm)
- Rope capacity(m)
- Material:
- Rotation direction:left or right?
FAQ
Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C, Western Union or paypal.
Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that
is available to be custom. Or if you have your own designed idea
and that will be our honor to customize for you.
Q3: This is my first time to import, how can I trust your company
and ensure to get the goods if I order from you?
A: We are certification company, and we support payment terms like
L/C, Escrow, to ensure your safety.
Q4: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing,
we will confirm product undamaged, otherwise, please contact within
2days. Because we've bought insurance for you, we or shipping
company will be responsible!
Q5: Where will the orders be shipped from?
A: It will ship from the main ports China. And We will find the
shipping company which will offer the best and most economical
freight for our customers.
Q6. how long is the machine making time?
--- For small grooved drum sleeves , which making time is about 5-7
days after receiving your deposit.
--- For some big size grooved drum sleeves , which making time is
about 10-15 days after receiving your deposit.
Our Service
All products purchased in our company are guaranteed to keep in
good repair for one year.
If quality problems happen in guarantee period, our company will
maintain for free.
a. Before sending the machine, we will test and adjust, so you can
use directly when you get it.
b. Operation video & instruction will be sent to clients, to help
them use the machines better.
Additionally, our company provides technical support and fittings
for life. After-sales service isn't restricted by time and we
will solve your problems in time.
If you are caught in some problems when using our products, welcome
to contact us at any time.
a. Any problems occur while using, professional advice will be
offered.
b. All kinds of frequently used parts are supplied all the year
round.
