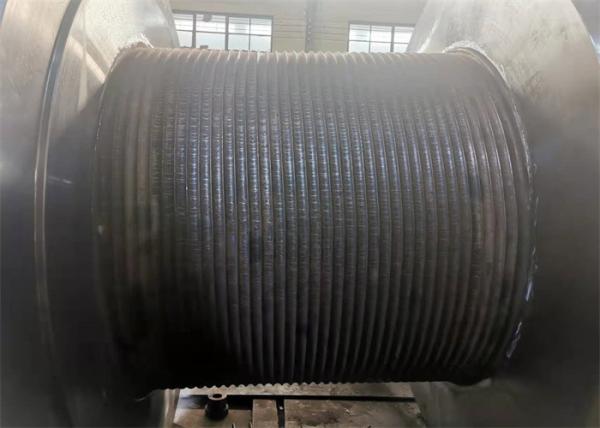

Tower Crane Drum 1500mm Large Diameter Cable Steel Metaril LBS
Grooved Winch Drum
overview
| Product name | Cable winch drum |
| Drum Quantity | Single Or Double |
| Drum Design | LBS Groove Or Spiral Groove |
| Material | Carbon Stainless And Alloy Steels |
| Size | Customization |
| Application Range | Construction Mining Terminal operation |
| Power Source | Electric and hydraulic |
| Rope Capacity | 100~300M |
| |
Grooved Winch Drum
Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum,
High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center
Product Structure
Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch
drum with flange, the LBS groove is cut directly into the body of
the drum, according to customers’ requirements, the flanges are
either welded or screw-bolted. groove geometry is determined by
rope construction, diameter and length, and by application. the
drum has the required mounting dimensions for the actual operating
conditions.
LBSD Series Grooved drum :
About Size:
We can manufacture all sizes of drums. From now, we have finished
the drums from 50mm to 2000mm in diameter. And its length range is
from
100mm to 2000mm.
Some parameters:
| Rope diameter(mm) | 5 12 24 32 42 58 |
| Grooved drum diameter(mm) | 80 150 300 500 800 1100 |
| Width between the flanges flanges(mm) | 150 280 300 460 750 1000 |
| Rotation direction | L R R L L R |
| Number of layers | 3 2 4 6 8 8 |
| Rope capacity(m) | 18 19 43 127 360 1800 |
Our equipment
Our factory has more than 2000 sets of advanced equipment such as
casting, forging, gear processing, sheet metal stamping, riveting,
heat treatment and mechanical processing. In recent years, the
Germany CW1000 machining center, CNC four axis, five axis linkage
machining center, CNC punch, large CNC hobbing gear grinding
machine, large CNC floor boring and milling machine, Vacuum
electron beam welding, CNC welding robot and 80 roll machine and
other advanced processing equipment.
Why choose us
With the reliability of the product, it has achieved remarkable
results in military and civil applications.
For example, it has been used in Marine vessels, oil drilling,
construction machinery, coal metallurgy and other fields
In addition, the products are also exported to the United States,
Britain, Spain, Germany, France, Italy, Denmark and other European
and American countries, as well as Japan, South Korea, Singapore,
Australia and other Asia-pacific countries
In the process of production and operation, we adhering to the
"pursuit of excellence, excellence" concept and deep cooperation
with domestic and foreign universities, research institutes, formed
a "production, use, collaborative innovation" model of development,
rigorous scientific method and the specialization of production,
the combination of constantly absorbing new technology improved
product of research and development, producing a batch of and a
batch of high quality products suitable for the market,Also for
customers to solve one after another technical problems.
At the same time, the company has always followed the service
attitude of "keep promise, treat each other honestly", looking
forward to sincere cooperation with customers at home and abroad!
