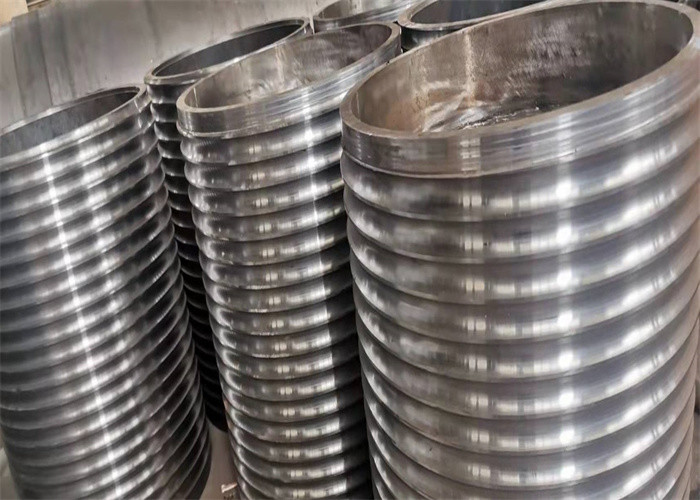

Semi-Finished Hot Dip Galvanized Carbon Steel LEBUS Trough Cable
Winch Drum
overview
Cable winch is an essential part of the construction products such
as underground cable lines and vertical rods, which can be
conveniently used in various complex environments for smooth
erection of wire hanging, pulling or tightening.
Cable winch is composed of drum, gearbox, diesel engine or gasoline
engine and base.
| Product name | Cable winch drum |
| Drum Quantity | Single Or Double |
| Drum Design | LBS Groove Or Spiral Groove |
| Material | Carbon Stainless And Alloy Steels |
| Size | Customization |
| Application Range | Construction Mining Terminal operation |
| Power Source | Electric and hydraulic |
| Rope Capacity | 100~300M |
| |
Principle of mobile reamer grinding:
the reamer grinding groove is directly connected to the gasoline
engine or car with the wire rope and the traction groove. Diesel
engine, motor for power, through the transmission gear box to meet
the speed requirements, the whole machine adopts steel structure,
smooth and convenient movement.
Application:
it is suitable for site construction of traction and hoisting
machinery equipment and tower building, traction line and cable
laying of electric power, post and telecommunication line group.
Features of winch
Winch has the following characteristics: high versatility, compact
structure, small size, light weight, heavy lifting, easy to use and
transfer, is widely used in construction, water conservancy
engineering, forestry, mining, wharf and other materials lifting or
flat drag, but also can be used as the supporting equipment of
modern electronic control automatic operation line. There are 0.5
to 350 tons, divided into fast and slow two kinds. Which is higher
than 20 tons for the large tonnage winch, winch can be used alone,
can also be used as lifting, road construction and mine lifting
machinery components, because of simple operation, large rope, easy
to move and widely used. The main technical indicators of winch are
rated load, support load, rope speed, rope capacity and so on.
Use of winch
The main uses of the winch are as follows: first, as lifting
equipment, it is used for mine lifting, sinking lifting and
suspension (lifting) sinking equipment and facilities, that is,
along the shaft lifting ore, waste (gangue) stone, lifting
personnel, lowering materials, tools and equipment; Second, it is
used as transportation equipment for underground scheduling and
transportation of ore (harvester), stope rake ore (slag) or
filling, removing columns, etc.
Drawing dimensions
Drum features:
Processing Equipment: CNC Machining Center
Rotation Direction Of Grooves: Lefthand
Wire Rope Diameter: 3 MM~65 MM
Each Layer Laps: 20.5 laps
Layer: 5 Layer
Rope Groove Type: LEBUS Rope Groove
Number Of Ropes: Two
Product Equiment
Our factory has more than 2000 sets of advanced equipment such as
casting, forging, gear processing, sheet metal stamping, riveting,
heat treatment and mechanical processing. In recent years, the
Germany CW1000 machining center, CNC four axis, five axis linkage
machining center, CNC punch, large CNC hobbing gear grinding
machine, large CNC floor boring and milling machine, Vacuum
electron beam welding, CNC welding robot and 80 roll machine and
other advanced processing equipment
