Brand Name : | LBS |
Model Number : | LBSS Series |
Certification : | CCS |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 1000 Pieces Per Month |
Delivery Time : | General Order 15-30 Days |

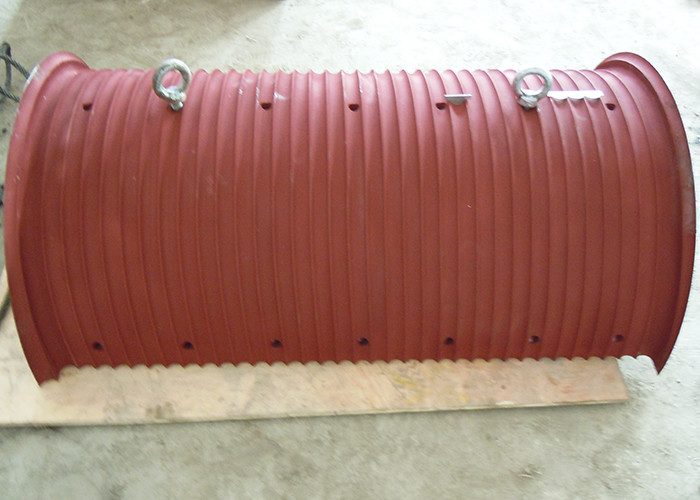

Sleeves are used to prevent damage to a drum. It is usually cheaper to replace a worn out sleeve instead of replacing or repairing the complete drum assembly. That is why grooved sleeves have become so popular.
The LeBus Grooving System involves a product made specifically for use on any or all types of hoisting drums requiring the use of wire rope or electro-mechanical cable.
Lebus sleeves can be made of various metal materials ,nylon and glassSizes range from 3 inches to over 18 feet in diameter and 4 to144 inches (or more) in width.
PRODUCT NAME | Prevent Hoist Drum Damage Lebus Sleeves,Size And Material Can Be Customized |
PRODUCT OTHER NAME | Lebus groove sleeve |
PROCESSING EQUIPMENT | CNC machining center |
DRUM GROOVE ROTATION | Lefthand ,Righthand |
SLING TYPE | Wire rope or cable |
ROPE CAPACITY | 50-1000M |
PRODUCT OTHER NAME | LBS groove drum or wire rope drum |
MATERAIL | metal materials ,nylon and glassSizes |
GROOVING TYPE | Lebus groove |
WARRANTY | 1year |
No: | Wire diameter(mm): | Rotation direction | Main drum diameter(mm) | Main drum length(mm) | Application |
1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch, Towing winch Tower crane |
2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch, Lifting winch,Crawler crane |
3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Mining winch Logging Winch |
4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch, drawworks |
5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch, Lifting equipment |
6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 | Offshore Crane, Marine crane,Mooring winch |
![]() |
