    Groove Ccs Certified Lebus Sleeve For Winch Drum

    Ask Lasest Price
    Brand Name : LBS
    Model Number : LBSS Series
    Certification : CCS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 Pieces Per Month
    Delivery Time : General Order 15-30 Days
    • Product Details
    • Company Profile

    Groove Ccs Certified Lebus Sleeve For Winch Drum

    Increase Of Wire Rope Life And Save Money Device Lebus Sleeves For Winch Drum

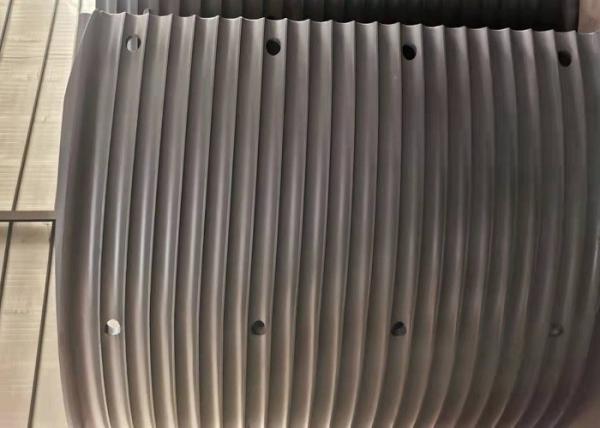

    Split sleeves for efficient use


    The LEBUS split-sleeve system consists of a pair of outer shells that are bolted or welded onto a smooth drum to provide a grooving pattern. Either helical or LEBUS parallel grooves can be carved into the sleeves.
    As with all LEBUS drums, the grooving in split sleeves is engineered to match the specific rope construction, diameter and length, and to suit the application.


    Product lookview:
    PRODUCT NAMEmulti-layer wire rope of cable onto hoisting drum spooling system lebus sleeves
    PRODUCT OTHER NAMELebus groove sleeve
    PROCESSING EQUIPMENTCNC machining center
    DRUM GROOVE ROTATIONLefthand ,Righthand
    SLING TYPEWire rope or cable
    ROPE CAPACITY50-1000M
    PRODUCT OTHER NAMELBS groove drum or wire rope drum
    MATERAILHigh polymer nylon or carbon steel
    GROOVING TYPELebus groove
    WARRANTY1year
    Technical parameters and application:
    No:Wire diameter(mm):Rotation directionMain drum
    diameter(mm)
    Main drum length(mm)Application
    18 10 13Lefthand,Righthand430763The oil workover rig winch,
    Towing winch
    Tower crane
    213 18 20Lefthand,Righthand6231144Engineering winch,
    Lifting winch,Crawler crane
    322 25 26Lefthand,Righthand7301220Mining winch
    Logging Winch
    418 22 32Lefthand,Righthand6701240Drilling Rig Winch,
    drawworks
    528 32 36 40Lefthand,Righthand560630Rotating Drilling Rig winch,
    Lifting equipment
    626 28 32 45Lefthand,Righthand760 11461970 1765Offshore Crane,
    Marine crane,Mooring winch
