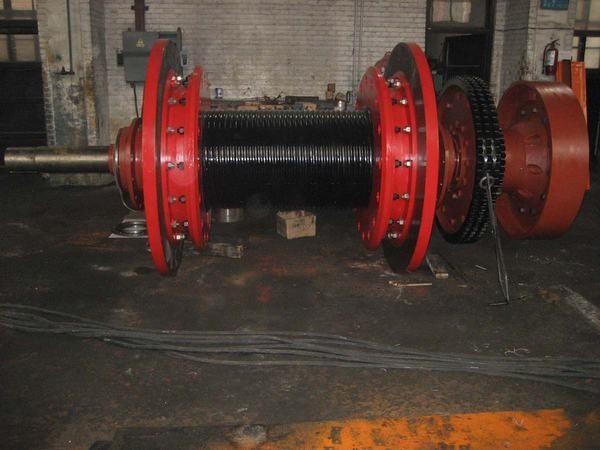

High Power Slow Speed Lebus Hydraulic Crane Winch Used In Petroleum
Equipment
Lebus winch
Winch (drawworks) is the core component of the oil rig, mainly used
to deliver tools, hoist/descend derricks and run the drilling tools
and pipe shrouds into the well during the drilling process.
Product Introduction
Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless
Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center
| Product name | Hydraulic crane winch |
| color | yellow /black /gray/as customes |
| size | 35*35*20 |
| Pull | 8/10/15/20 |
| layer | 1-7 |
| Wire rope capacity | 17-230 |
| Hydraulic motor | As customes |
| Planetary reduction ratio | I=5.23 |
| L/min | As customes |
Product Outline Drawing:
Product parameters
Model | Pull force (KN) | Rope speed (m/min) | Drum bottom Diameter (mm) | Difference of working pressures (Mpa) | Rope capacity (mm) | Diameter of steel rope (mm) | Model of hydraulic motor |
LBSW-DN10-10-00 | 10 | 0-40 | 250 | 13 | 100 | 10 | C2.5-5.5 |
| LBSW-DN12-18-00 | 12 | 0-40 | 250 | 12.5 | 100 | 12 | C2.5-5.5 |
| LBSW-DN14-20-00 | 20 | 0-35 | 300 | 12 | 100 | 14 | C2.5-5.5 |
| LBSW-DN15-30-00 | 30 | 0-30 | 350 | 14 | 100 | 15 | C3-5.5 |
| LBSW-DN22-65-00 | 65 | 0-35 | 550 | 15 | 200 | 22 | C5-5 |
| LBSW-DN24-80-00 | 80 | 0-30 | 600 | 16 | 200 | 24 | C5-5.5 |
| LBSW-DN30-120-00 | 120 | 0-30 | 750 | 16 | 200 | 30 | C7-5.5 |
| LBSW-DN38-180-00 | 180 | 0-30 | 860 | 16 | 200 | 38 | C7-5.5
|
Main Export Markets:
Asia / Australasia /Central / South America / Eastern Europe /
North America / Western Europe
FAQ:
Q1.Are you a factory or a trading company?What can you provide?
We are a factory locates in industrial belt of Shijiazhuang
City,our main products are hydraulic orbit motors,hydraulic
winches, hydraulic brakes, hydraulic stee hole punchers, hydraulic
steerings, etc.
Q2. I want to buy your product,how can I pay?
We support T/T,Paypal, Western Union,also you can pay through
Alibaba trade assurance
Q3.How about the warranty?
We promise to supply high quality products and professional
after-sales service.We can supply technical support as long as you
need,beyond that, we also offer six months of warranty.
Q4.If we don't find what we want on your website, what should we
do?
You can start a conversation to us or send us email about the
descriptions and pictures of the products you need, We will check
if we can supply.
Q5.Can we buy 1pc of each item for quality testing?
Yes, we understand quality test is important and we are glad to
send 1pc for quality testing
