Our factory has more than 2000 sets of advanced equipment such as
casting, forging, gear processing, sheet metal stamping, riveting,
heat treatment and mechanical processing. In recent years, the
Germany CW1000 machining center, CNC four axis, five axis linkage
machining center, CNC punch, large CNC hobbing gear grinding
machine, large CNC floor boring and milling machine, Vacuum
electron beam welding, CNC welding robot and 80 roll machine
Product Application:
1. Offshore Marine machinery: Offshore petroleum crane winch,
Mooring winch, Traction winch, Man-riding winch, Anchor winch,
Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine,
Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist,
Petroleum workover rig, Trailermounted pumping unit winch , Logging
winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist,
Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking
winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry
crane,Crawler crane winch
some Technical Parameters
No: | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
1 | 3~8
| 3~10 | Lefthand,Righthand | >160 | <1000 |
2 | 10~16
| 12~20 | Lefthand,Righthand | >320 | <1000 |
3 | 18~24
| 20~80 | Lefthand,Righthand | >480 | <1000 |
4 | 26~32
| 100~120 | Lefthand,Righthand | >640 | <1000 |
5 | 34~40
| 150~200 | Lefthand,Righthand | >800 | <1000 |
6 | 42~50
| 240~400 | Lefthand,Righthand | >1000 | <100 |

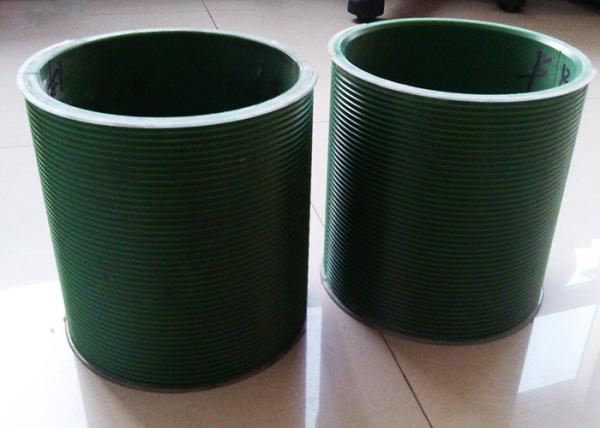

Precautions for using lebus grooves
Generally, the tighter the wire rope is, the better it is wound.
The wire rope should withstand at least 2% of the breaking load or
10% of the operating load as recommended by LeBus. Of course, for
safety factor and wire rope design, must be prepared to withstand
the destructive load.
The design and manufacture of LEBUS groove drum should meet the
special requirements of lifting operation, and the type of rope
groove should adapt to the length, diameter and structure type of
wire rope. Mechanical design, machining, design software,
mechanical engineer, equipment management, welding, hydraulic,
casting, sealing.
