Removable Half Split Lebus Grooved Sleeves For Winch Drum

Ask Lasest Price
Brand Name :	LBS
Model Number :	LBSS series
Certification :	CCS
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	200000
Delivery Time :	After Advance 15-30 Days

Add to Cart

Product Details
Company Profile

Removable Half Split Lebus Grooved Sleeves For Winch Drum

Removable Half- Split Lebus Grooved Sleeves For Winch Drum

LBSS Series Grooved Sleeves(Shell)

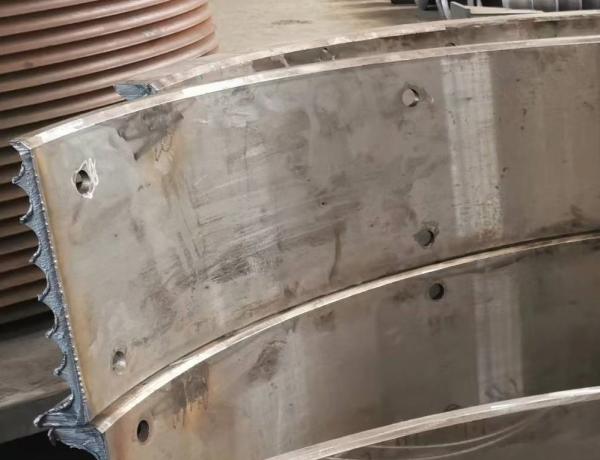

Split-sleeve consists of a pair of outer shells that are bolted or welded onto a smooth drum. We can manufacture spiral groove and lebus groove.
The split-sleeve depends on the drum’s size,wire rope diameter and length.

Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center

Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the
drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope
construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.

The Advantages of Sleeves

1.It is much easier to change the sleeves that the whole drum in the event of a change in application or type of rope.
2.It is much less expensive to change the sleeves that the whole drum in the event of a change in application or type of rope.
3.The lifetime of the drum increases considerably because only the sleeves need changing when the groove eventually wears out.
4.Sleeves can be retrofitted onto existing drums, even on site.

About Size

We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from 100mm to 2000mm.

Some Technical Parameters

No	Wire diameter(mm)	Pulling Force(KN)	Rotation Direction	Drum Diameter(mm)	Drum Length(mm)
1	3~8	3~10	Lefthand,Righthand	>160	<1000
2	10~16	12~20	Lefthand,Righthand	>320	<1000
3	18~24	20~80	Lefthand,Righthand	>480	<1000
4	26~32	100~120	Lefthand,Righthand	>640	<1000
5	34~40	150~200	Lefthand,Righthand	>800	<1000
6	42~50	240~400	Lefthand,Righthand	>1000	<100

Removable Half Split Lebus Grooved Sleeves For Winch Drum
