    Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner

    Ask Lasest Price
    Brand Name : LBS
    Model Number : LBSD Series
    Certification : CCS, ABS
    Price : USD, EUR, RMB / Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 Pieces Per Month
    Delivery Time : General Order 15-30 Days
    • Product Details
    • Company Profile

    Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner

    Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner

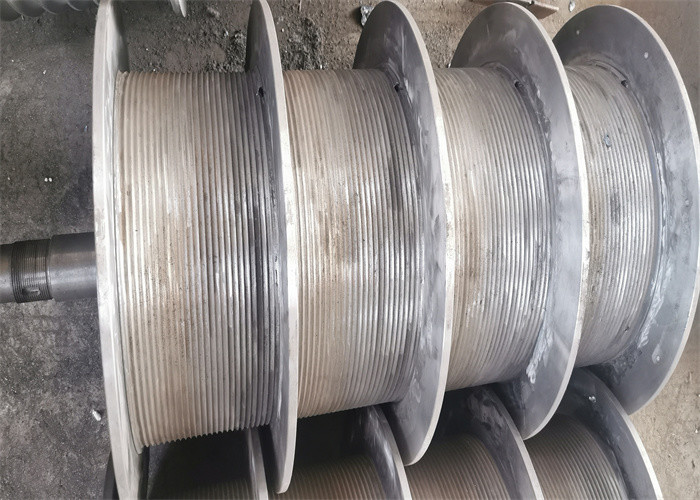

    LEBUS rope groove

    With the development of oil drilling winches in recent decades, winches appear more. The transmission form and the structure form are various, but the winding rope rule of the winch drum is not change, our company developed LEBUS rope groove has obvious advantages. LEBUS rope groove double line form, suitable for multi-layer winding, can effectively reduce or avoid steel wire rope disorder phenomenon. In the design process of the drawworks drum, the drawworks drum has a large opening range small, bottom diameter selection, position of guide block, rope socket structure, rope groove spacing, rope groove the spiral angle of the parallel section and the climbing section will affect the effect of drum rope winding, because this, the study of winch drum structure and characteristics, will help to reduce or avoid oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum life.

    Product infromation

    The nameSlowly Speed Carry People Up And Down Winch With Four Drums For Window Cleanere
    Hoist speed0.95-1.27m/s
    Rotate speed720-960 r/min
    Rope diameter3-30mm
    Sling typewire rope
    Direction rotationleft or right
    Applicationhoist
    Parametercan be designed
    ApplicationWindow Cleanere
    Drum diameter400mm~500mm
    Drum width1000mm

    Technical Parameters

    No:Wire diameter(mm)Pulling Force(KN)Rotation DirectionDrum Diameter(mm)Drum Length(mm)
    13~83~10Lefthand,Righthand>160<1000
    210~1612~20Lefthand,Righthand>320<1000
    318~2420~80Lefthand,Righthand>480<1000
    426~32100~120Lefthand,Righthand>640<1000
    534~40150~200Lefthand,Righthand>800<1000
    642~50240~400Lefthand,Righthand>1000<1000

    LeBUS rope groove specifications

    Custom design or processing according to drawings.
    Lebus rope groove drum is divided into integral and split, integral needs to process drawings.
    The separation needs parameters such as drum diameter, outer diameter, length, wire rope diameter, rope groove rotation (left or right) and so on.

    Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner

    Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window CleanerSlowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window CleanerSlowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner

    Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner
