Galvanized Multiple Cable Lebus Grooved Winch Drum For Window Washer

Ask Lasest Price
Brand Name :	LBS
Model Number :	Non-Standard
Certification :	CCS
Price :	Negotiation
Payment Terms :	L/C, T/T
Supply Ability :	150 sets per month
Delivery Time :	15 to 30 working days, depends on order amounts and specification

Add to Cart

Product Details
Company Profile

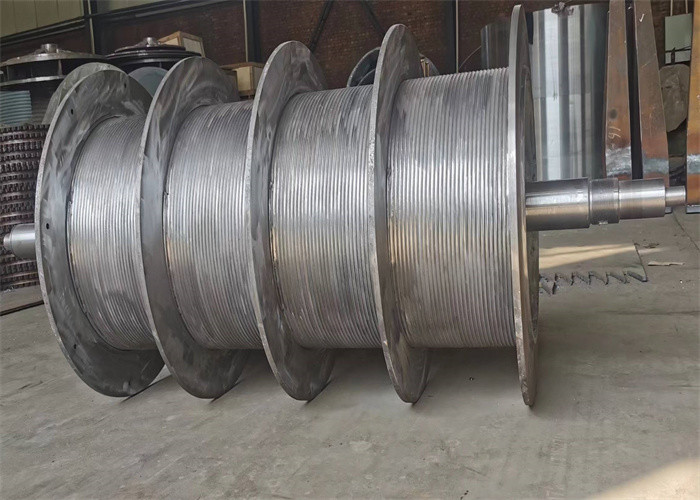

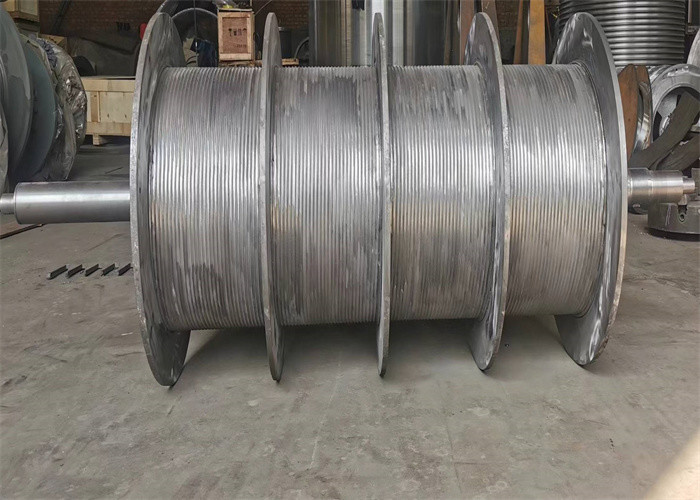

Galvanized Multiple Cable Lebus Grooved Winch Drum For Window Washer

Galvanized Multiple Cable LEBUS Grooved Drum for Window Washer

overview

Drum Quantity	Quadruplex
Drum Design	With lebus grooves
Material	Q355D
rope capacity	55m
Application Range	Window washer
Power Source	Electric and hydraulic
External processing	Galvanized

LEBUS rope groove

With the development winches in recent decades, winches appear more. The transmission form and the structure form are various, but the winding rope rule of the winch drum is not change, our company developed LEBUS rope groove has obvious advantages. LEBUS rope groove double line form, suitable for multi-layer winding, can effectively reduce or avoid steel wire rope disorder phenomenon. In the design process of the drawworks drum, the drawworks drum has a large opening range small, bottom diameter selection, position of guide block, rope socket structure, rope groove spacing, rope groove the spiral angle of the parallel section and the climbing section will affect the effect of drum rope winding, because this, the study of winch drum structure and characteristics, will help to reduce or avoid oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum life.

Technical Parameters

No:	Wire diameter(mm)	Pulling Force(KN)	Rotation Direction	Drum Diameter(mm)	Drum Length(mm)
1	3~8	3~10	Lefthand,Righthand	>160	<1000
2	10~16	12~20	Lefthand,Righthand	>320	<1000
3	18~24	20~80	Lefthand,Righthand	>480	<1000
4	26~32	100~120	Lefthand,Righthand	>640	<1000
5	34~40	150~200	Lefthand,Righthand	>800	<1000
6	42~50	240~400	Lefthand,Righthand	>1000	<1000

Processing equipment:

CNC machining center

Galvanized Multiple Cable Lebus Grooved Winch Drum For Window Washer
