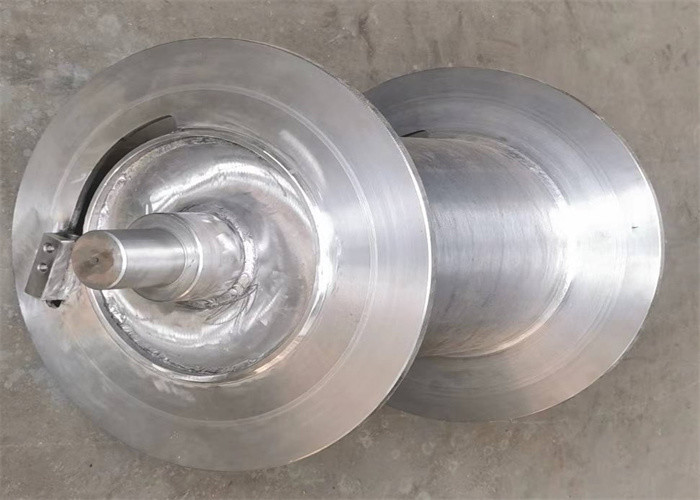

CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist

Ask Lasest Price
Brand Name :	LBS
Model Number :	Non-Standard
Certification :	CCS
Price :	Negotiation
Payment Terms :	L/C, T/T
Supply Ability :	150 sets per month
Delivery Time :	15 to 30 working days, depends on order amounts and specification

Add to Cart

Product Details
Company Profile

CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist

overview

Drum Quantity	singel
Drum Design	With lebus sleeves
Material	Q355B
rope capacity	200m
Application Range	rig drawwork
Power Source	Electric and hydraulic
External processing	galvanized
Machining	CNC machining center

overview of the Wich drum

The role of the winch drum is mainly to transfer the speed and torque of the motor to it through the spindle into the linear speed of the wire rope around it, in order to lift and lower the object.
According to the different manufacturing process, the drum structure of the hoist can be divided into casting- welding mixed type (supporting wheel for casting, drum for welding) and welding type.

Technical Parameters

No:	Wire diameter(mm)	Pulling Force(KN)	Rotation Direction	Drum Diameter(mm)	Drum Length(mm)
1	3~8	3~10	Lefthand,Righthand	>160	<1000
2	10~16	12~20	Lefthand,Righthand	>320	<1000
3	18~24	20~80	Lefthand,Righthand	>480	<1000
4	26~32	100~120	Lefthand,Righthand	>640	<1000
5	34~40	150~200	Lefthand,Righthand	>800	<1000
6	42~50	240~400	Lefthand,Righthand	>1000	<1000

range of application

a.Crane machinery: The bridge lifting machine, Tower crane, Gantry crane, Crawler crane winch, etc
b,The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailer mounted pumping unit winch , Logging winch, etc
c.Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydraulic winch, etc
d. The construction machinery: Building wipe wall winch, Winding hoist, Windlass, etc
e. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch, etc
f. Mining winch: Dispatching winch, Prop-pulling winch, Sinking winch, etc
