Offshore Marine Crane Parts Bracket Drive For Sweep Line Winch
Product feature

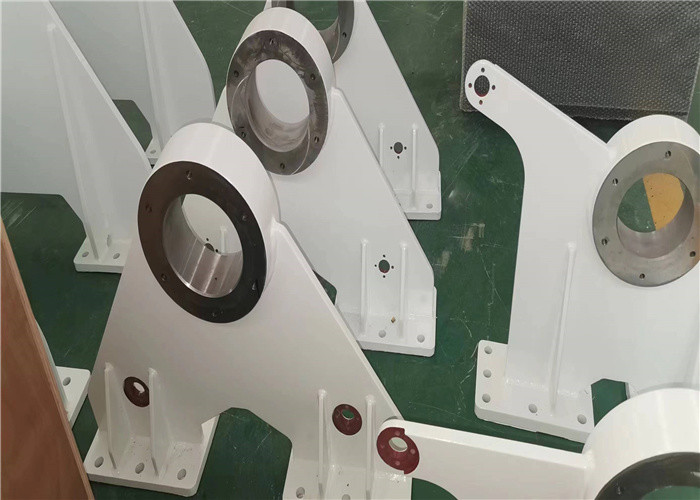

Product name: Offshore Marine Crane Parts Bracket - Drive For Sweep Line Winch
Other name: Marine Winch bracket-drive.
Standard: NS-ISO 13920BF
Sling type: cable or wire
power: Electirc
colour: Inerthane 990 Blue white
Rope: 100-1000mm
Rope diameter: 3-199mm
Tolerance General: NS-ISO 13920BF
Our company mainly serves lifting machinery, marine machinery,
petroleum machinery, water conservancy machinery, We can produce
winches and all steel parts for winches.
Other Features
1. Our products have the advantages of compact structure, light
weight, safe and easy to operate.
2. Our products are used for general lifting, hauling and other
works in marine deck machinery, harbor, petroleum, drill machine,
engineering machinery, mining, geological exploration and
construction machinery and etc.
3. Products are designed and manufactured according to API Spec 7K
“Specification for Drilling Equipment”.
4. High starting& working efficiency.
5. Reliable operation with little noise.
Structural composition
| Q/TY | ITEM | DESCRIPTION | TECHNICAL DESCRIPTION | MATERIAL | MASS | |
| 1 | 1 | Plate | PL30 | S355J2+N | 146.68KG | |
| 2 | 2 | Plate | PL25 | S355J2+N | 11.23KG | |
| 1 | 3 | Plate | PL25 | S355J2+N | 18.63KG | |
| 1 | 4 | Plate | PL20 | S355J2+N | 18.63KG | |
| 2 | 5 | Plate | PL20 | S355J2+N | 4.25KG | |
| 1 | 6 | Tube square | w300* H300 *T12 *L1250 | S355J2H | 26.26KG | |
Preparation and cutting of steel
Cutting and beveling of materials shall be carried out by thermal
cutting or machining.
Thermally cut edges shall be ground to sound metal before welding.
All sharp edges, corners and Curing Zone must be rounded to
R=2.5mm.
Stainless steel shall by ground, and then acid treated and cleaned
before use.
Application
1. Offshore Marine machinery: Offshore petroleum crane winch,
Mooring winch, Traction winch, Man-riding winch, Anchor winch,
Hydraulic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine,
Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist,
Petroleum workover rig, Trailermounted pumping unit winch , Logging
winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist,
Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking
winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry
crane,Crawler crane winch
The LeBus system is a method of controlling the spooling of wire
rope on a winch drum so that there is no practical limit to the
number of layers that can be spooled with safety, irrespective of
the severity of load and speed conditions or the sizes of rope and
drum.
Techinical parameters:
Test temperature and charpy V-notch impact energy shall be in
accoradance with DNV lifting appliances No.2.22. values for plates
in primary and essential welded steel structure is listed in table
below:
| Yield stress Re(MPa) | Thichness(mm) | temp(°C) | Impact energy(J) |
| 355 | 6< t ≤ 25 | 0 | 34 |
| 25< t ≤ 50 | -20 | 34 |
| 50< t ≤ 70-40 | -40 | 41 |
| 70< t ≤ 150 | -40 | 50 |
| 690 | 6< t ≤ 25 | 0 | 46 |
| 6< t ≤ 25 | -20 | 46 |
| 50< t ≤ 70 | -40 | 46 |
